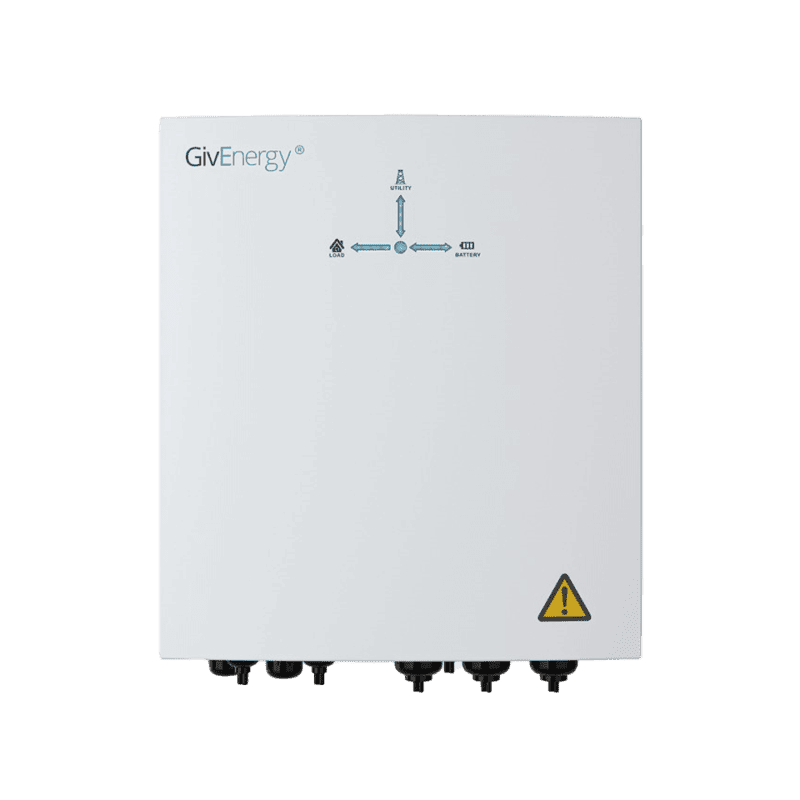

Giv-Gateway
100A Max AC current
230V Rated grid voltage
180 to 270 AC voltage range
Wi-Fi, LAN and 4G
Seamlessly switch between the grid and battery, GivEnergy’s Giv-Gateway works alongside the All In One to keep your home powered during outages. As a vital connection point for solar PV systems, it ensures uninterrupted energy generation, even when the grid is down.
Reliable Performance
Delivers up to 18.4kW rated AC power, providing seamless power for high-demand appliances and larger homes.
Minimalist Design
Compact and pre-installed with an energy meter, it reduces the need for additional components to be installed.
Live Monitoring And Remote Control
In-built Wi-Fi and LAN offers a clear view and control of energy usage, solar generation and battery levels in real-time.
10-Year Warranty
Ensures long-term reliability, durability, and cost savings.
Technical Specifications
| General Information | |
|---|---|
| Rated Load Output Power | 18.4kW |
| Rated Grid Output Power | 18.4kW |
| Rated EV Charger Output Power | 7.2kW |
| Rated Grid Frequency | 50/60Hz±5Hz |
| Dimensions (H x W x D) | 410H x 190D x 370W (mm) |
| Weight | 12.75Kg |
| Ingress Protection | IP65 |
| Warranty | 10 Years |
Accesories
Giv-Gateway
Bracket
Mounting screw (Qty: 2)
Wall plug (Qty: 2)
Antenna
Key
M6 x 12 Bracket Screw (Qty: 4)
