Humber Three-Phase Plus
12kW MAX PV input
10ms Switchover
11.6A Max output current
10.2 kWh Capacity

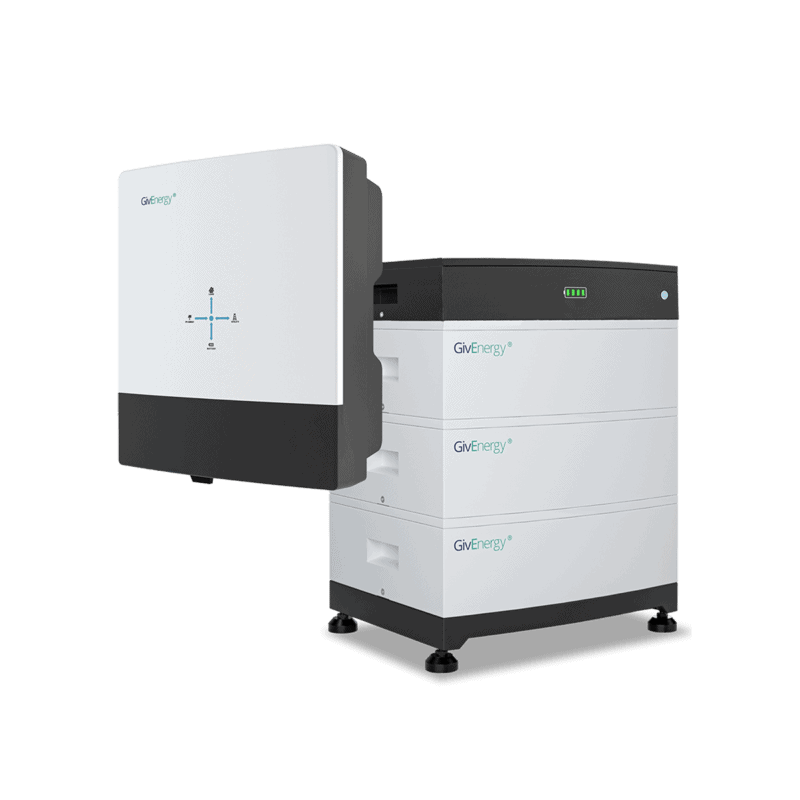

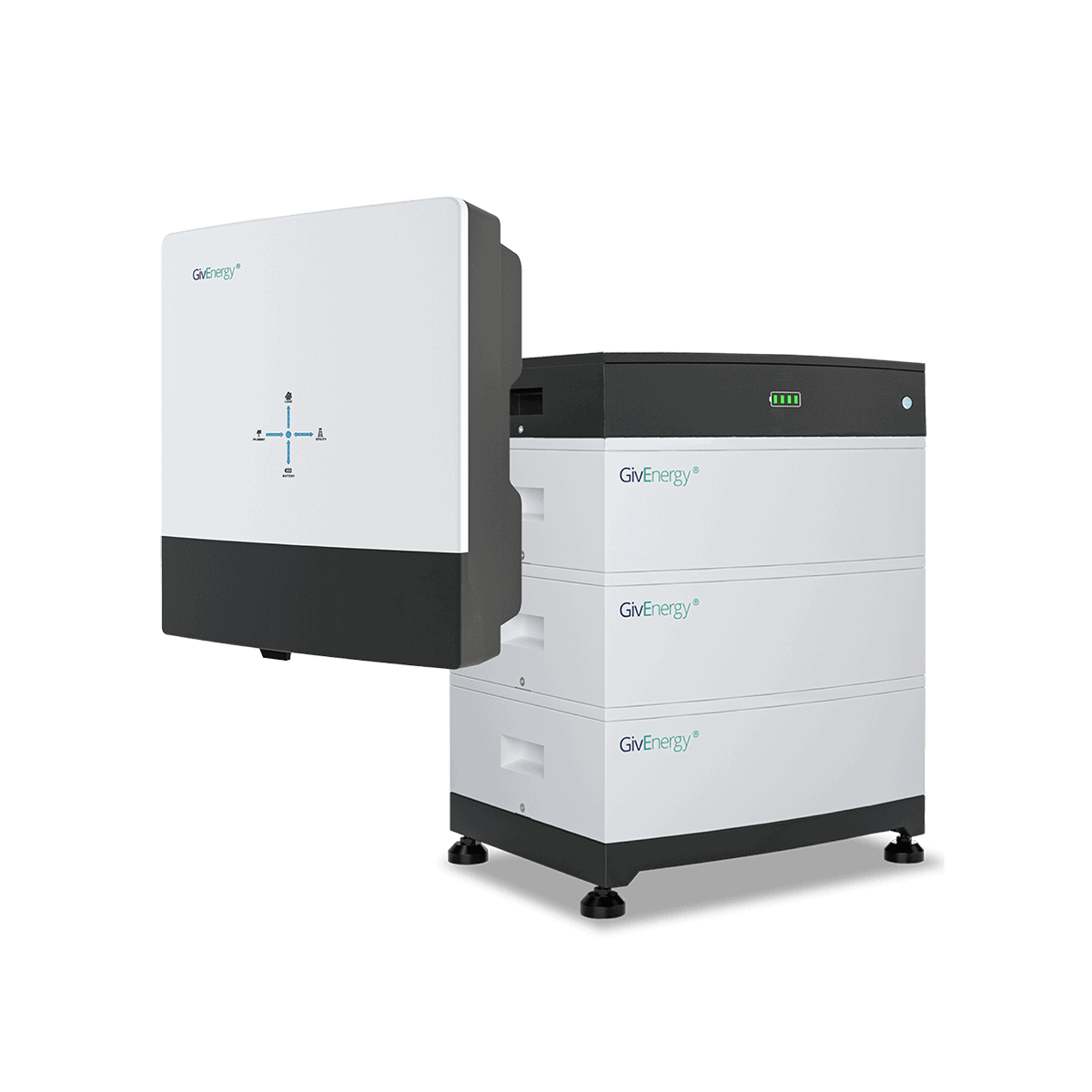

The Humber Three-Phase Plus pairs an 8kW Hybrid Inverter with the high-voltage Giv-Stack 3 stackable batteries.
Enjoy seamless solar integration, scalable storage, and smart energy optimisation. This Collection is ideal for homeowners looking to reduce grid reliance while keeping future expansion in mind.
Uninterrupted Power
Fast 10ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Stack on more batteries as your energy needs grow, without the need for complex reinstallations.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
AC Today, Solar Tomorrow
Flexible charging options allow you to charge via the grid or maximise solar energy generation via its built-in four solar string connections with advanced MPPT technology.
Technical Specifications
| General Information | |
|---|---|
| Inverter Nominal AC Output Power | 8kW |
| Usable Battery Capacity | 10.2kWh |
| Automatic Switch Time | < 10ms |
| Battery Chemistry | LiFePO4 |
| Rated Battery Charge/Discharge Power | 8kW / 8kW |
| Inverter Warranty | 10 Years |
| Battery Warranty | 10 Years, or 5,000 Cycles |
| Inverter Op Temp | -25ºC - +60ºC |
| Battery Op Temp | -20ºC - +55ºC |
| Battery Voltage Range | 190.8 - 259.2VDC |
| PV Efficiency | 97.6% |
| Product Dimensions | Hybrid Inverter 8.0 |
|---|---|
| Width | 480mm |
| Depth | 214mm |
| Height | 588mm |
| Net product weight | 36kg |
| High Voltage Batteries 3 | |
| Width | 480mm |
| Depth | 380mm |
| Height | 635mm |
| Net product weight | 119.8kg |
