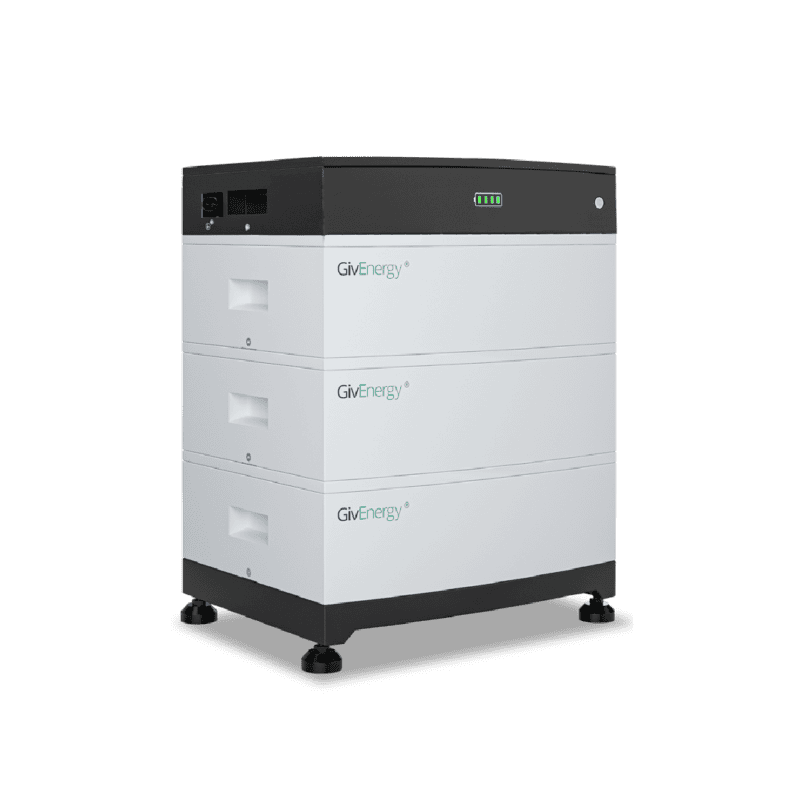

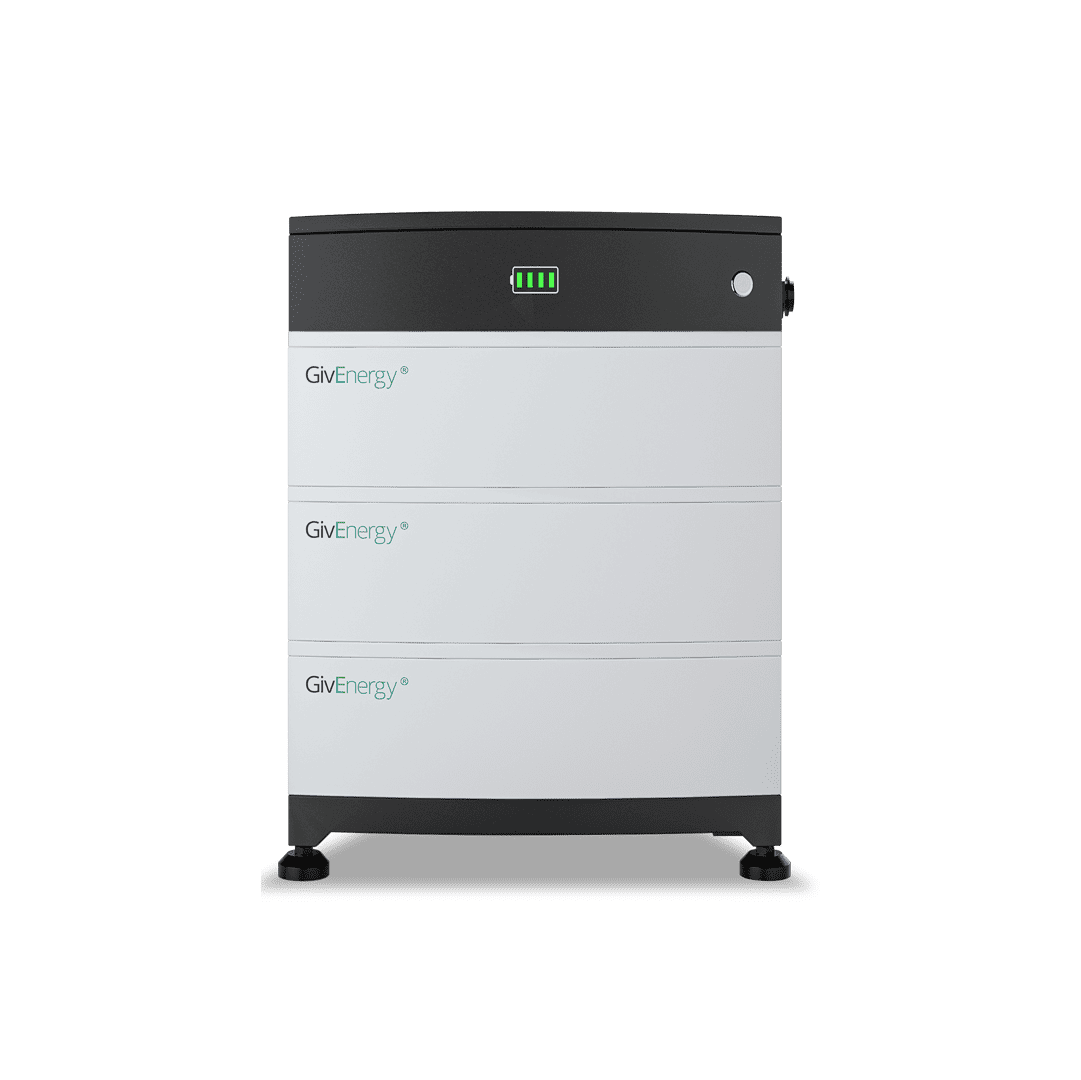

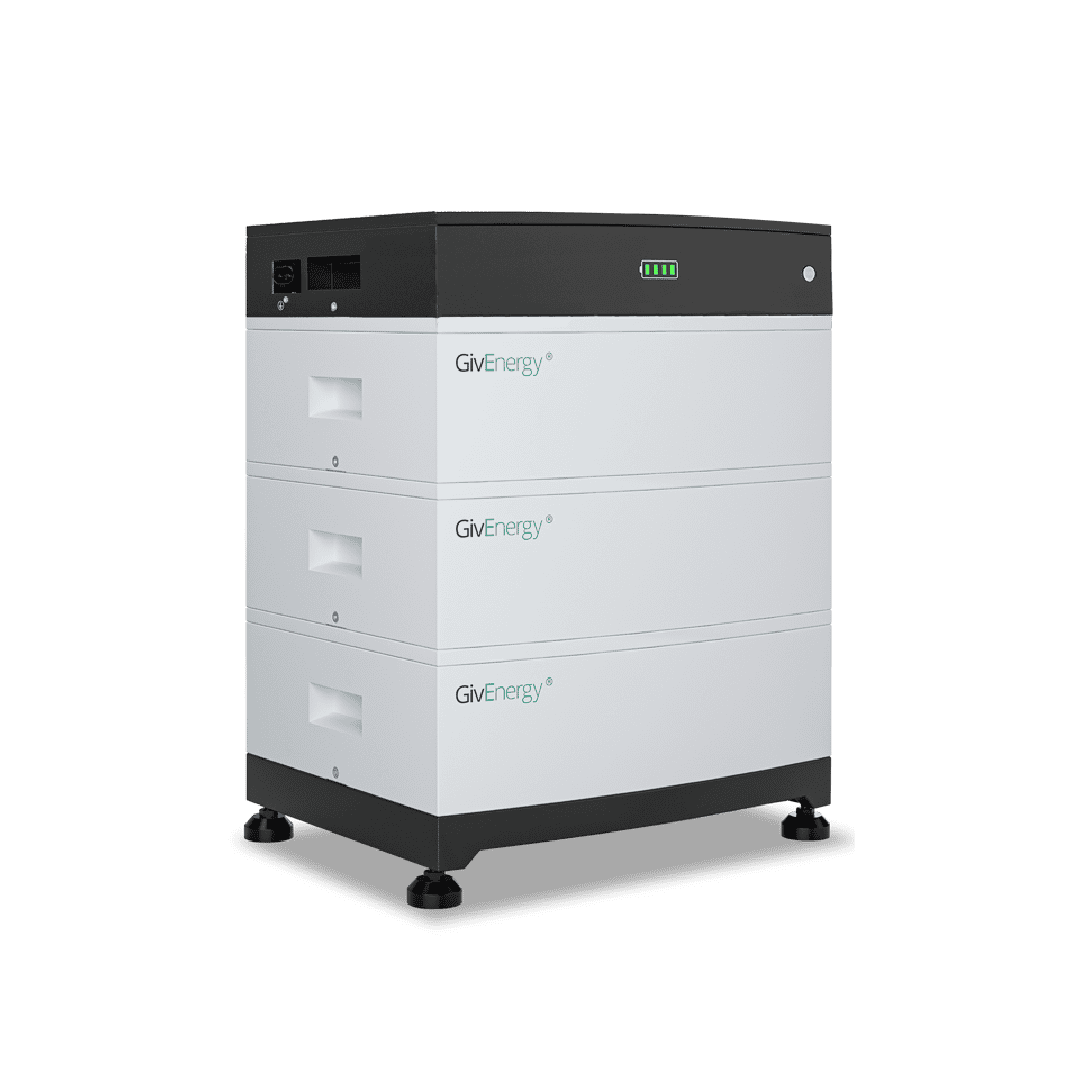

Giv-Stack 3 (High Voltage)
230VDC Nominal voltage
25A Max current
100% Depth of Discharge
IP65 weatherproof, indoor/outdoor
Complementing the High Voltage Hybrid Inverter, the Giv-Stack 3 offers a modular approach to energy storage, allowing you to start with a single 10.2kWh unit and expand up to 81.6kWh as your needs grow.
Built with safe and long-lasting LiFePO4 battery technology, they deliver a powerful continuous charge/discharge current of 25A. Ideal for those seeking reliable performance and enhance energy resilience.
High Voltage and Efficiency
Operating within a 200–600V range, they ensure more efficient charging and discharging, optimising energy use and minimising power loss.
Unmatched Durability
Unlimited cycles at 100% Depth of Discharge under a 10-year warranty (5,000 cycles), ensures a long-lasting performance.
Modular Storage
Start with 3 (10.2kWh) and expand, up to 81.6kWh, to meet your growing energy needs.
Intelligent Energy Management
Seamlessly integrates with the GivEnergy ecosystem for real-time monitoring, optimising energy usage and savings.
Technical Specifications
| General Information | |
|---|---|
| Battery Chemistry | LiFePO4 |
| Nominal Capacity | 10.2kWh |
| Usable Capacity | 10.2kWh |
| Nominal Voltage | 230VDC |
| Operating Voltage Range | 190.8 - 259.2VDC |
| Max Charge/Discharge Power (Rated DC Power) | 6kW |
| Max Current | 25A |
| Depth of Discharge | 100% |
| Warranty | 10 Years, or 5,000 Cycles |
| Weight | 133Kg |
| Dimensions | 635H x 380D x 480W (mm) |
| Ingress Protection | IP65 |
| Operating Temperature | -20ºC - +55ºC |
| Storage Temperature | -30ºC - +60ºC |
| Communication Interface | CANBUS. Built-in communication terminals (CANBUS, CAN-L, CAN-H) |
Accesories
GIV-BAT HV Kit: Base Plate
HV Box
Cable Inverter to HV Box
Template / Positioning Part
Screws (M6 Bracket, Securing Battery Stack)
GIV-BAT-3.4-HV Batteries
Screws
Wall Bolts M6
Battery Cables
