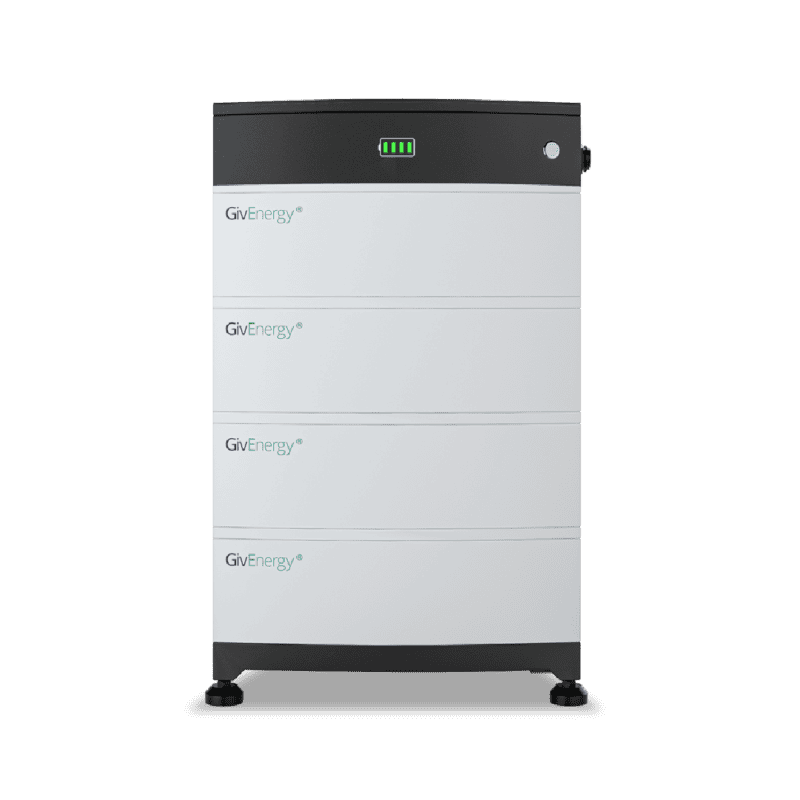

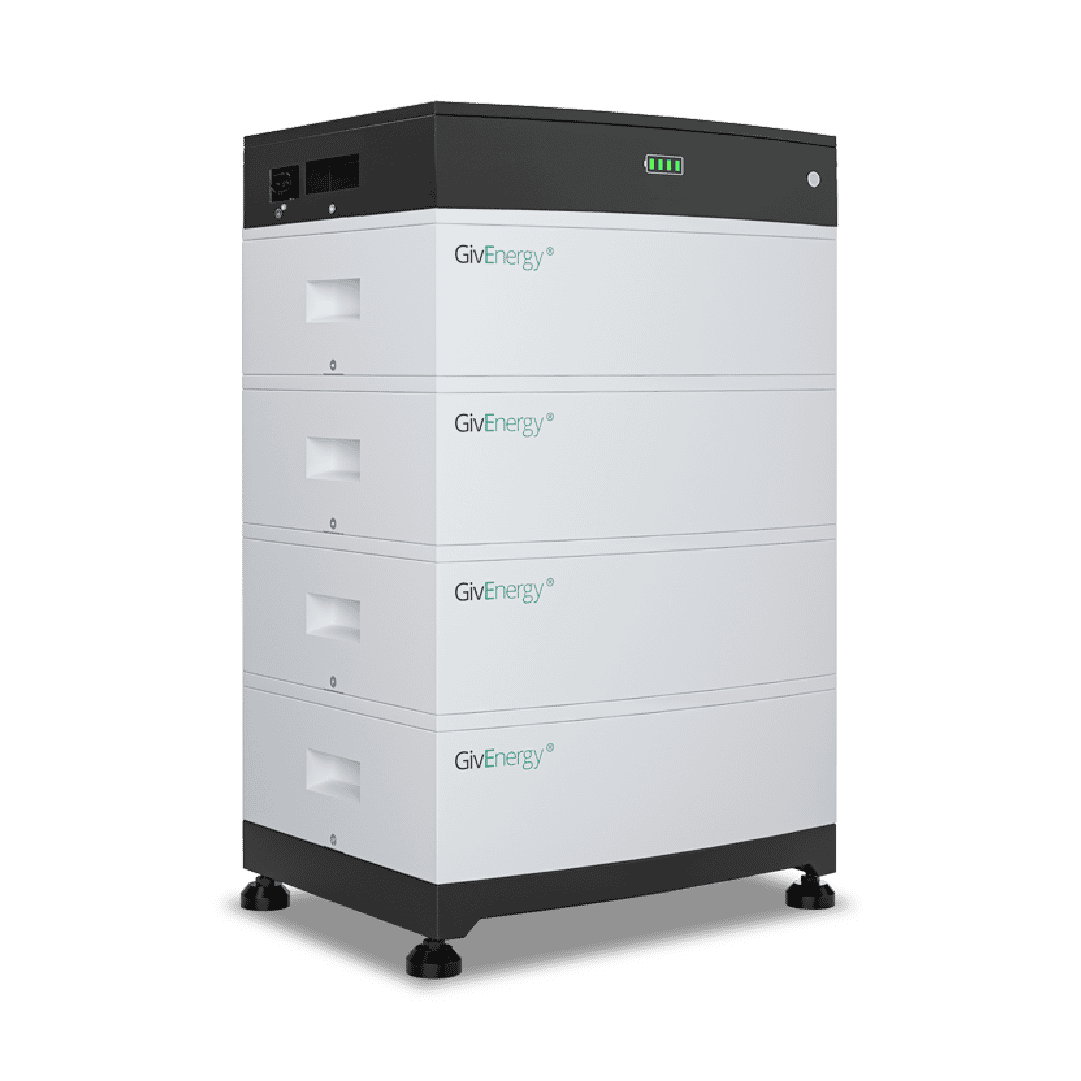

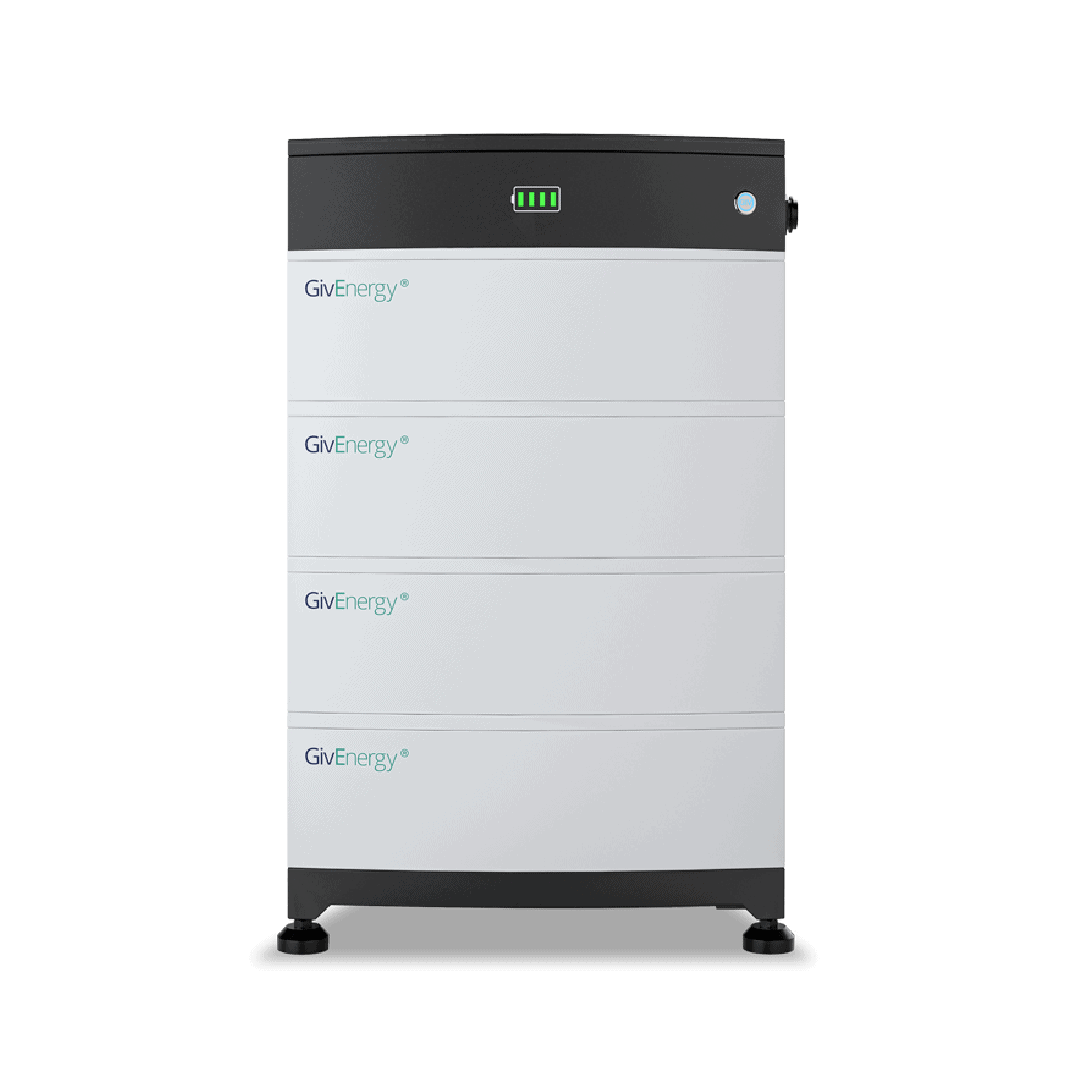

Giv-Stack 4 (High Voltage)
307VDC Nominal voltage
25A Max charging/discharging current
100% Depth of Discharge
IP65 weatherproof, indoor/outdoor
Unlock unmatched energy independence with the Giv-Stack 4. Designed for flexibility, this safe and durable LiFePO4 modular battery system allows you to start with a single 13.6kWh unit and expand up to 81.6kWh as your needs grow.
Whether you’re storing surplus solar energy or preparing for potential outages, this battery ensures your home can run for days. Plus, with a 10-year warranty, you can enjoy long-term peace of mind while maximising your energy savings.
High Voltage and Efficiency
Operating within a 200–600V range, they ensure more efficient charging and discharging, optimising energy use and minimising power loss.
Unmatched Durability
Unlimited cycles at 100% Depth of Discharge under a 10-year warranty (5,000 cycles), ensures a long-lasting performance.
Modular Storage
Start with Giv-Stack 4 (13.6kWh) and expand, up to 81.6kWh, to meet your growing energy needs.
Intelligent Energy Management
Seamlessly integrates with the GivEnergy ecosystem for real-time monitoring, optimising energy usage and savings.
Technical Specifications
| General Information | |
|---|---|
| Battery Chemistry | LiFePO4 |
| Nominal Capacity | 13.6kWh |
| Usable Capacity | 13.6kWh |
| Nominal Voltage | 307VDC |
| Operating Voltage Range | 254.4- 345.6VDC |
| Max Charge/Discharge Power (Rated DC Power) | 8kW |
| Max Current | 25A |
| Depth of Discharge | 100% |
| Warranty | 10 Years, or 5,000 Cycles |
| Dimensions | 785H x 380D x 480W (mm) |
| Weight | 164Kg |
| Ingress Protection | IP65 |
| Operating Temperature | -20ºC - +55ºC |
| Storage Temperature | -30ºC - +60ºC |
| Communication Interface | CANBUS. Built-in communication terminals (CANBUS, CAN-L, CAN-H) |
Accesories
GIV-BAT HV Kit: Base Plate
HV Box
Cable Inverter to HV Box
Template / Positioning Part
Screws (M6 Bracket, Securing Battery Stack)
GIV-BAT-3.4-HV Batteries
Screws
Wall Bolts M6
Battery Cables
