Trent Hybrid Collection Pro
7.5kWp Max PV input
10ms Switchover
Dual MPPT trackers
19kWh Capacity (2 x 9.5kWh)

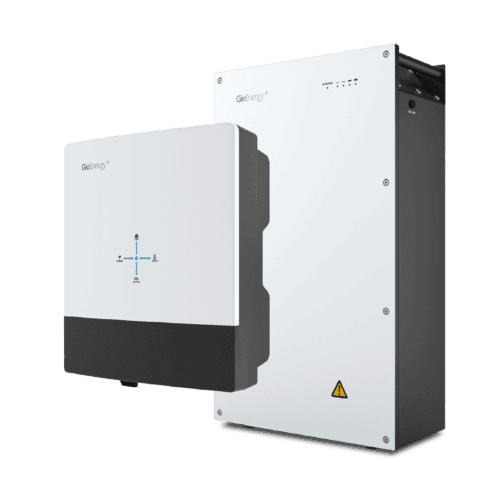

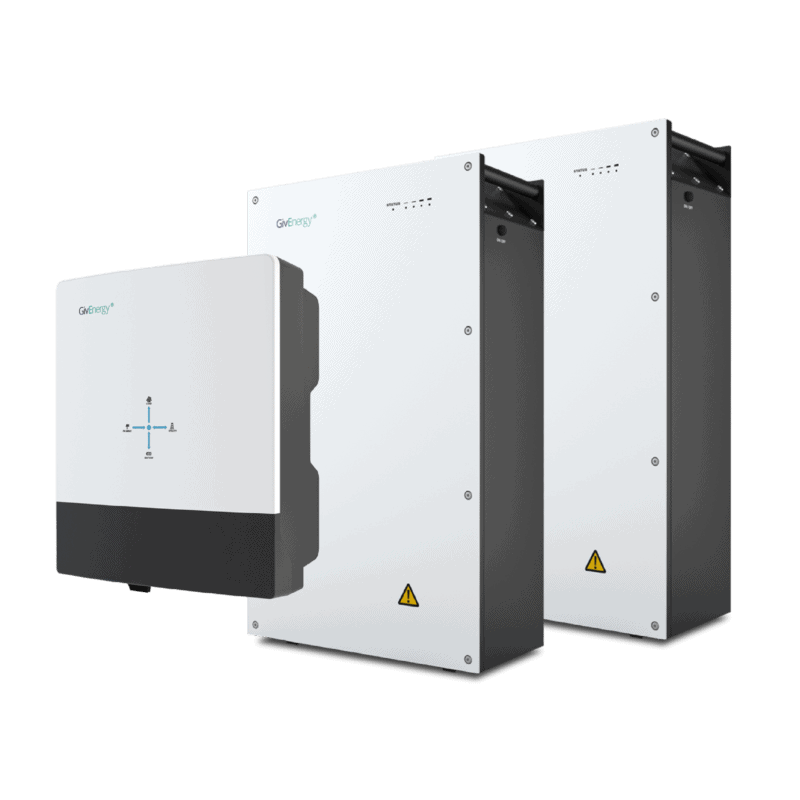

The Trent Hybrid Pro, featuring a 5.0kW Hybrid Inverter and 19kWh of low-voltage storage, delivers smart, scalable energy to support everyday living, from EV charging to essential backup power.
With a generous starting capacity, it’s ideal for maximising solar self-consumption and keeping your home running efficiently.
Uninterrupted Power
Ultra-fast 10ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Stack on more batteries as your energy needs grow, without the need for complex reinstallations.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
AC Today, Solar Tomorrow
Flexible charging options allow you to charge via the grid or maximise solar energy generation via its built-in four solar string connections with advanced MPPT technology."
Technical Specifications
| General Information | Inverter Nominal AC Output Power | 5kW |
|---|---|
| Battery Usable Capacity | 19kWh |
| Inverter Max. Backup Output Power: | 5.5kW |
| Max. System Charge/Discharge Power | 5.4W / 5.4W |
| Battery Chemistry | LiFePO4 |
| Battery Voltage | 44.8 - 57.6VDC |
| Automatic Switch Time (Backup) | < 10ms |
|
Inverter Warranty
|
10 Years
|
| Battery Warranty | 12 Years, or 5,000 Cycles |
|
Ingress Protection
|
IP65
|
|
Inverter Op Temp
|
-25°C - +60°C
|
|
Battery Op Temp
|
-10°C - +55°C
|
| Product Dimensions | LV Hybrid Inverter |
|---|---|
| Width | 480mm |
| Depth | 223mm |
| Height | 588mm |
| Weight | 32Kg |
| 9.5 Battery | |
| Width | 480mm |
| Depth | 225mm |
| Height | 576mm |
| Net product weight | 85 x 2kg |
Accesories
Inverter (Qty 1)
Wall Mounting Bracket (Qty 1)
Mounting Bracket Fixings (Qty 5)
Battery Module (Qty 1)
Wall Mounting Bracket (Qty 1)
Expansion bolts (Fixing) (Qty 4)
Ground screw (Fixing) (Qty 1)
Security screw (Fixing) (Qty 2)
