More Power.
Greater Reward
Whether you’re keeping the lights on during outages, cutting electricity bills, or making the most of off-peak rates, the HV Single and Three-Phase Hybrid Inverter paired with stackable batteries adapts to your needs.
Seamlessly integrating with solar and AC power, it lets you store energy and use it when needed—ensuring efficiency, reliability, and greater energy freedom. What’s more, it comes pre-configured and with WAGO connectors to eliminate traditional installation headaches.
Compact and Powerful,
The Future of Home Energy

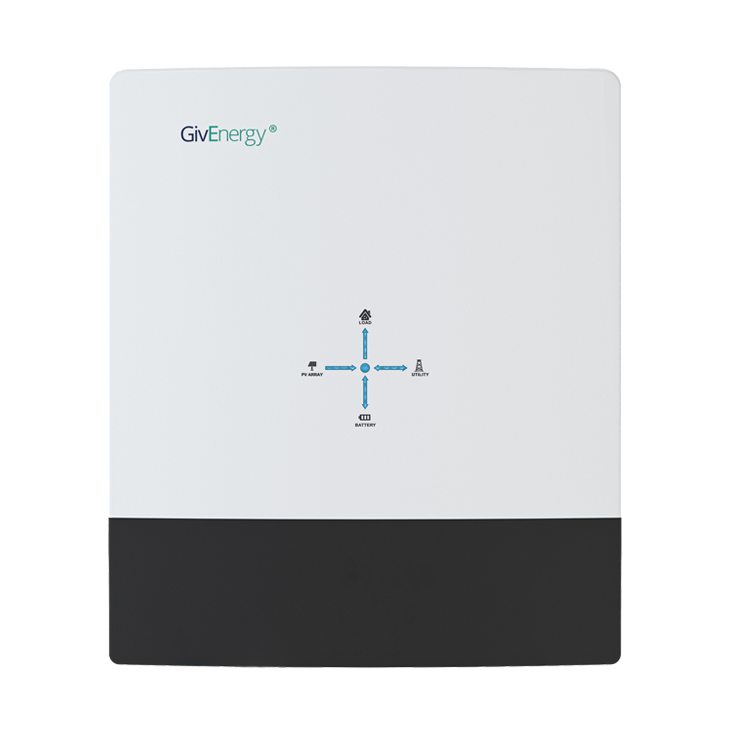

The GivEnergy Hybrid Inverter pushes boundaries by intelligently managing solar PV, AC power, and battery storage through a future-ready system.
Designed to pair with modular LiFePO₄ batteries, it allows you to scale your storage as your energy needs evolve, while delivering high efficiency, smart grid charging, and a <20ms switchover for seamless backup power.
With its compact form, built-in Wi-Fi and LAN, and support for remote monitoring, diagnostics, and firmware updates, it gives you complete visibility and control over your home energy system.
Meet Martin
An upscale homeowner with complex energy requirements—pool heating, EV charger, home gym, and more.
Challenge
Standard 48V batteries struggle with large surges and can’t keep up with his future expansion plans.
Energy Goals
Wants higher voltage and modular design for better charging efficiency and the option to stack as energy usage grows.
Solution

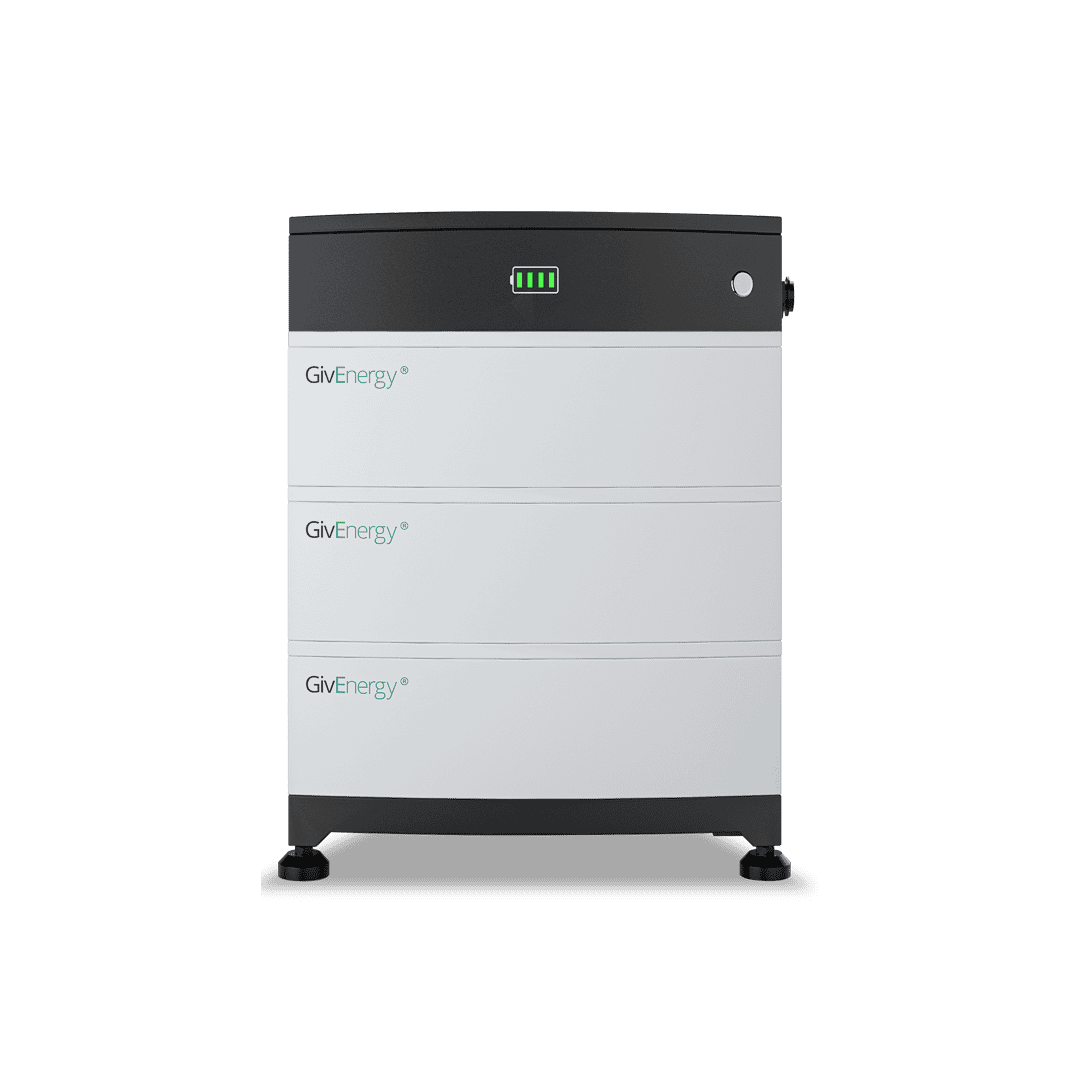

GivStack HV, which allows multiple high-voltage modules (up to 20.4kWh per stack), all seamlessly integrated for efficient, scalable power storage.
Higher Voltage, Lower Current
Reduces losses, boosting efficiency for Martin’s power-hungry property.
Modular Scalability (10.2–20.4kWh Stacks)
Martin can start with the right capacity and add more stacks without changing the core system.
5,000 Cycles at 85% DoD
Ideal for heavy daily consumption, ensuring longevity despite constant usage.
Scalable,
High Voltage Solution
The GivEnergy Hybrid Inverter delivers high-voltage power for large homes, EV charging, and reliable backup (<20ms). Its features include a Smart Air-Cooling System to enhance battery health, solar string connections with advanced MPPT technology to maximise solar generation, and smart technology that optimises grid charging only when rates are low.
Paired with LiFePO4 High Voltage Batteries, it offers scalable storage, allowing you to expand capacity as your energy needs grow—giving you more power, bigger savings, and complete energy control.
AC and solar-compatible, allowing you to seamlessly integrate solar panels whenever you choose—without needing to replace the inverter.
Fast 20ms switchover time, keeps essential appliances running in a blink of an eye.
Stack more batteries as your energy needs grow.
Uses LiFePO4 batteries that are fire-resistant, thermally stable and able to provide over 10 years of stable power.
Why Choose The Hybrid Inverter?
The GivEnergy Hybrid Inverter offers modern homes seamless integration of AC and solar, smart energy management, and compatibility with high-capacity battery storage.
Available in multiple variants, low or high voltage, single or three phase, it’s built to match a wide range of home energy needs that range from everyday usage to EV charging and full backup. With features like fast switchover, smart off-peak charging, and built-in Wi-Fi and LAN, it helps you lower bills, maximise efficiency, and stay powered day or night—grid or no grid.
Product Features
No More Blackouts
Switchover to battery in just 20ms, keeps essential loads running if the grid fails.
AC Now, Solar Later
Designed for both AC and solar compatibility, allowing you to start with grid charging and seamlessly transition to solar when ready.
High Pass Through Current
Ensures that high-demand essential appliances (heat pumps, EV chargers, air conditioning) remain operational even in backup mode.
Companion for Solar
Maximise solar power generation, even on non-uniform roof layouts.
Other Features
Long-Lasting Batteries
High-performance and fire-resistant LiFePO4 batteries deliver over 10 years of reliable power.
Live Monitoring And Remote Control
Clear view and control of energy usage, solar generation and battery levels in real-time.
10-Year Warranty
Ensures long-term reliability, durability and cost-savings.
Compact and Sleek Design
Measuring only 588H x 214D x 480W (mm), it’ll easily fit into any space.
Clean and Efficient Setup
Pre-configured settings, WAGO connectors and tool-free wiring ensures smooth setup.
Scalable Design
Expand battery capacity (up to 61.2kWh) based on your evolving needs.
Technical Information
This expanded comparison table provides a detailed technical breakdown of the different GivEnergy Hybrid Inverter models, helping installers and customers choose the right solution based on their energy needs.
Single-Phase Hybrid Inverter Range
Perfect for the typical household where loads mainly comprise lighting, heating, etc.
Pending CEC Approval
LV Single-Phase Hybrid Inverter 5.0kW
5.0kW Max AC output
7.5kWp Max PV input
5.0kW Nominal AC power
10ms Switchover
Dual MPPT trackers
580V Max PV voltage
21.7A Output current
RS485
AC and solar compatible
Wi-Fi and LAN
GivEnergy app & web portal
IP65 weatherproof, indoor/outdoor
Passive cooling system
Temp. range -20°C – 60°C
Up to 4,000m altitude
32Kg
588H x 214D x 480W (mm)
30dB Noise emission
12 Years warranty
Pairs with Giv-Energy scalable batteries
Which To Choose?
- Choose the 5kW HV Single-Phase Hybrid Inverter if you need a balanced solution for everyday household loads.
Three-Phase Hybrid Inverter Range
Perfect for buildings that need more power to run machines, motors, etc.
HV Three-Phase Hybrid Inverter 6.0kW
6kW Max AC output
9kWp Max PV input
6kW Nominal AC power
20ms Switchover
10.5A Max output current
1000V Max PV voltage
99.9% MPPT Efficiency
97.9% PV Max. Efficiency
RS485 and CAN
AC and solar compatible
Wi-Fi
GivEnergy app & web portal
IP65 weatherproof, indoor/outdoor
Temp. range -25°C – 60°C
Up to 4,000m altitude
35Kg
658H x 214D x 480W (mm)
30dB Noise emission
12 Years warranty
Pairs with Giv-Energy scalable batteries
HV Three-Phase Hybrid Inverter 8.0kW
8kW Max AC output
12kWp Max PV input
8kW Nominal AC power
20ms Switchover
13.5A Max output current
1000V Max PV voltage
99.9% MPPT Efficiency
97.9% PV Max. Efficiency
RS485 and CAN
AC and solar compatible
Wi-Fi
GivEnergy app & web portal
IP65 weatherproof, indoor/outdoor
Temp. range -25°C – 60°C
Up to 4,000m altitude
35Kg
658H x 214D x 480W (mm)
30dB Noise emission
12 Years warranty
Pairs with Giv-Energy scalable batteries
HV Three-Phase Hybrid Inverter 10.0kW
10kW Max AC output
15kWp Max PV input
10kW Nominal AC power
20ms Switchover
16.5A Max output current
1000V Max PV voltage
99.9% MPPT Efficiency
97.9% PV Max. Efficiency
RS485 and CAN
AC and solar compatible
Wi-Fi
GivEnergy app & web portal
IP65 weatherproof, indoor/outdoor
Temp. range -25°C – 60°C
Up to 4,000m altitude
35Kg
658H x 214D x 480W (mm)
30dB Noise emission
12 Years warranty
Pairs with Giv-Energy scalable batteries
HV Three-Phase Hybrid Inverter 11.0kW
15kWp Max PV input
11kW Nominal AC power
20ms Switchover
16.5A Max output current
1000V Max PV voltage
99.9% MPPT Efficiency
97.9% PV Max. Efficiency
RS485 and CAN
AC and solar compatible
Wi-Fi
GivEnergy app & web portal
IP65 weatherproof, indoor/outdoor
Temp. range -25°C – 60°C
Up to 4,000m altitude
35Kg
658H x 214D x 480W (mm)
30dB Noise emission
12 Years warranty
Pairs with Giv-Energy scalable batteries
Pending CEC Approval
HV Three-Phase Hybrid Inverter 20.0kW
30kWp Max PV input
20kW Nominal AC power
10ms Switchover
30A Pass through current
1000V Max PV voltage
99.9% MPPT Efficiency
98% PV Max. Efficiency
RS485 and CAN
AC and solar compatible
Wi-Fi and LAN
GivEnergy app & web portal
IP65 weatherproof, indoor/outdoor
Temp. range -25°C – 60°C
Up to 4,000m altitude
40.4kg
658H x 214D x 480W (mm)
30dB Noise emission
12 Years warranty
Pairs with Giv-Energy scalable batteries
Which To Choose?
- Choose the 6kW Three-Phase Hybrid Inverter if you want stable, balanced power and a fast, hassle-free installation.
- Choose the 8kW HV Three-Phase Hybrid Inverter if you seek stable, balanced power, have moderate energy use with the occasional high-demand load.
- Choose the 10kW Three-Phase Hybrid Inverter if you're looking to run EV chargers, heat pumps, and essential appliances with ease, all while enjoying a quick setup.
- Choose the 20kW Three-Phase Hybrid Inverter if you need to run heavy-duty equipment, multiple EV chargers, or energy-intensive systems.
