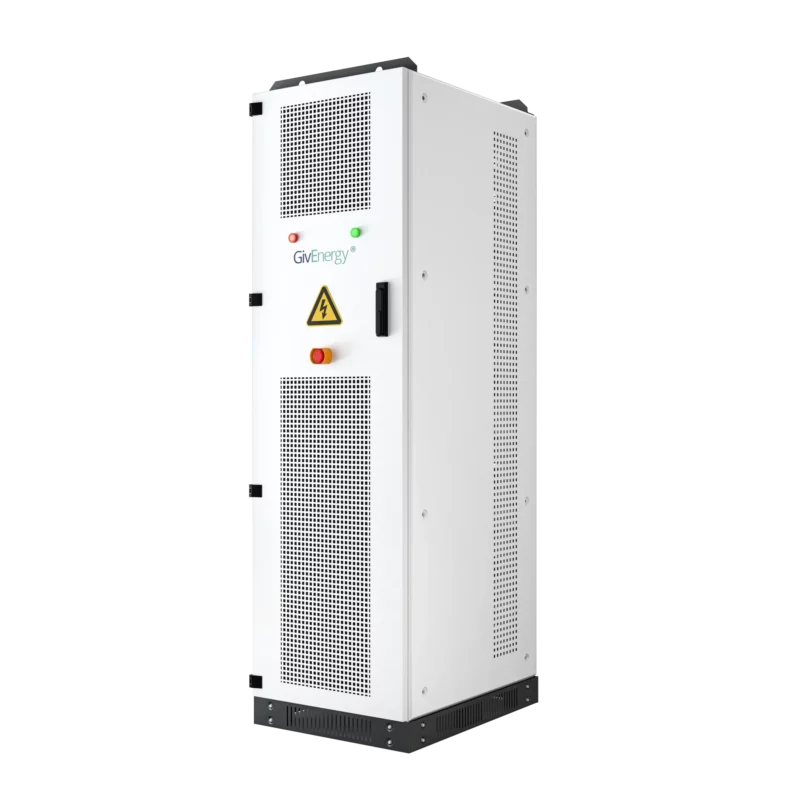

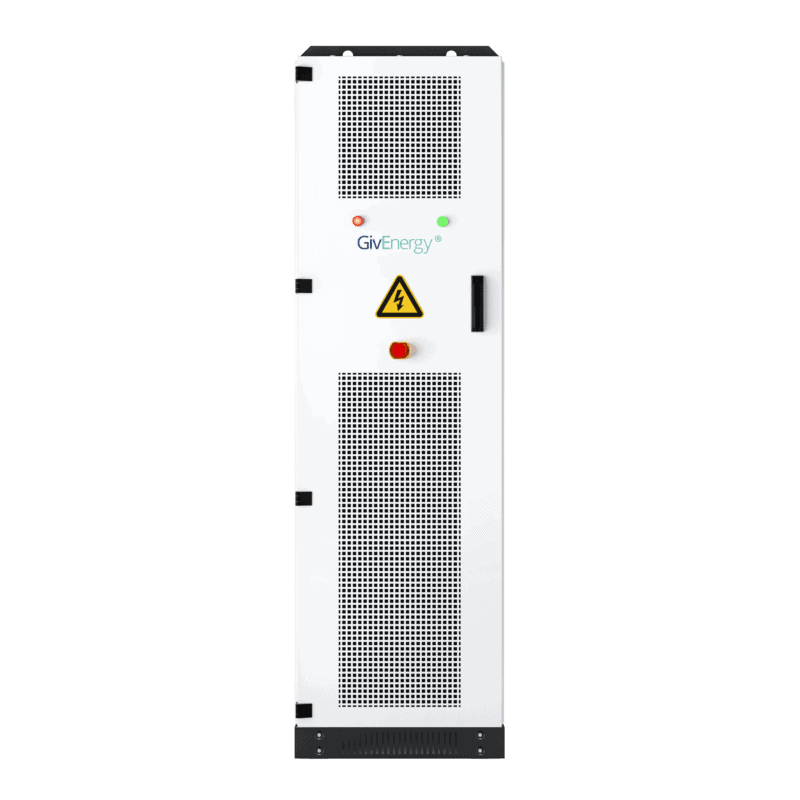

Commercial All In One AC Coupled
90% Depth of Discharge
600 – 790VDC Voltage range
300 – 400V Grid voltage range
Up to 6 units in parallel
The Commercial All In One combines a 30kW Power Conversion System (PCS) with scalable LiFePO4 battery storage to optimise energy use, reduce costs, and enhance resilience.
With access to real-time cloud monitoring and seamless grid integration, it enables businesses to store energy, manage peak demand, and improve efficiency.
Integrated Power and Efficiency
Combines a 69kWh LiFePO4 battery, PCS, and EMS into one compact unit, optimising space and power efficiency.
High Capacity and Scalability
Scalable to 6 units in parallel, reaching up to 414kWh, ensuring flexible storage solutions that grow with your business needs.
Maximise Energy Savings
Delivers a 30kW rated output power with 98.8% maximum efficiency and transformerless topology, minimising energy loss and maximising cost savings.
Reliable Power Output
Provides 36kW maximum power with <3% harmonic distortion, ensuring reliable and stable energy for commercial operations.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 69kWh, utilizing 9 high voltage battery units (7.68kWh each)- |
| Power Output | Maximum power of 36kW, rated power of 30kW |
| Inverter Efficiency | Maximum efficiency of 98.8% |
| Grid Compatibility | Rated grid voltage of 400V, frequency of 50Hz/60Hz |
| Cell Technology | LiFePO4 (Lithium Iron Phosphate) |
| Depth of Discharge | 90% |
| Dimensions | 2050H x 600W x 800D (mm) |
| Weight: | 950Kg ± 2% |
| Warranty | 10 years for both inverter and battery |
| Scalability | Parallel option to install 1-6 units |
| Product Dimensions | |
|---|---|
| Width | 600mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 950Kg +/- 2% |
