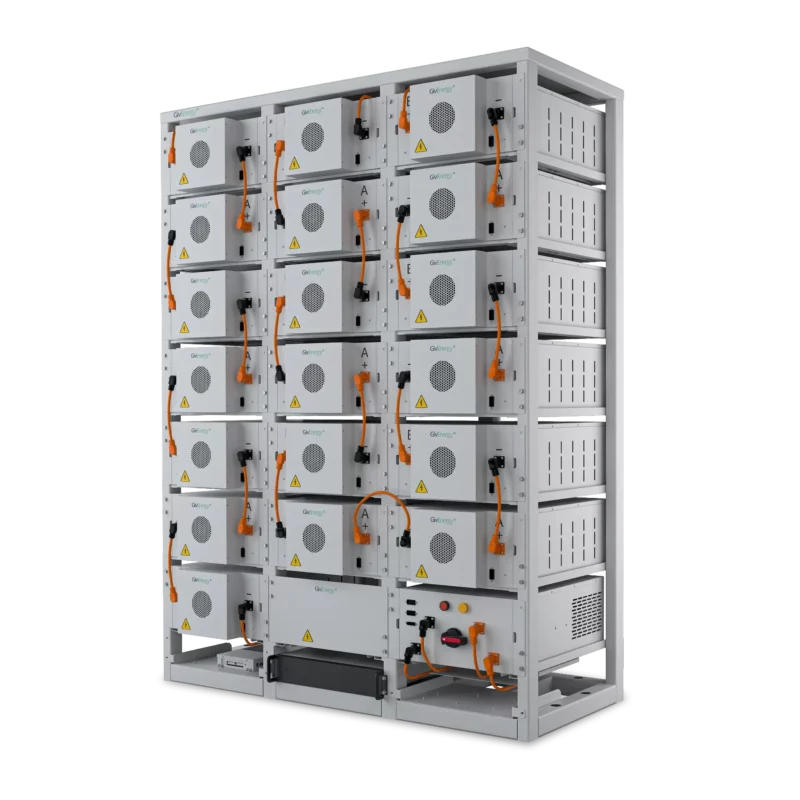

Commercial Battery Rack
600 – 850V DC voltage range
80% Depth of Discharge
0°C – 55°C Operational temp
Open rack mounting system
Built for flexibility, the GivEnergy Commercial Battery Rack is a modular energy storage solution tailored to your needs.

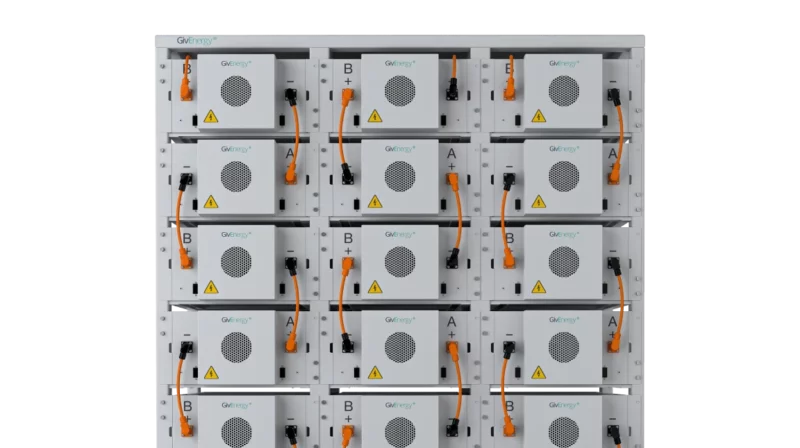

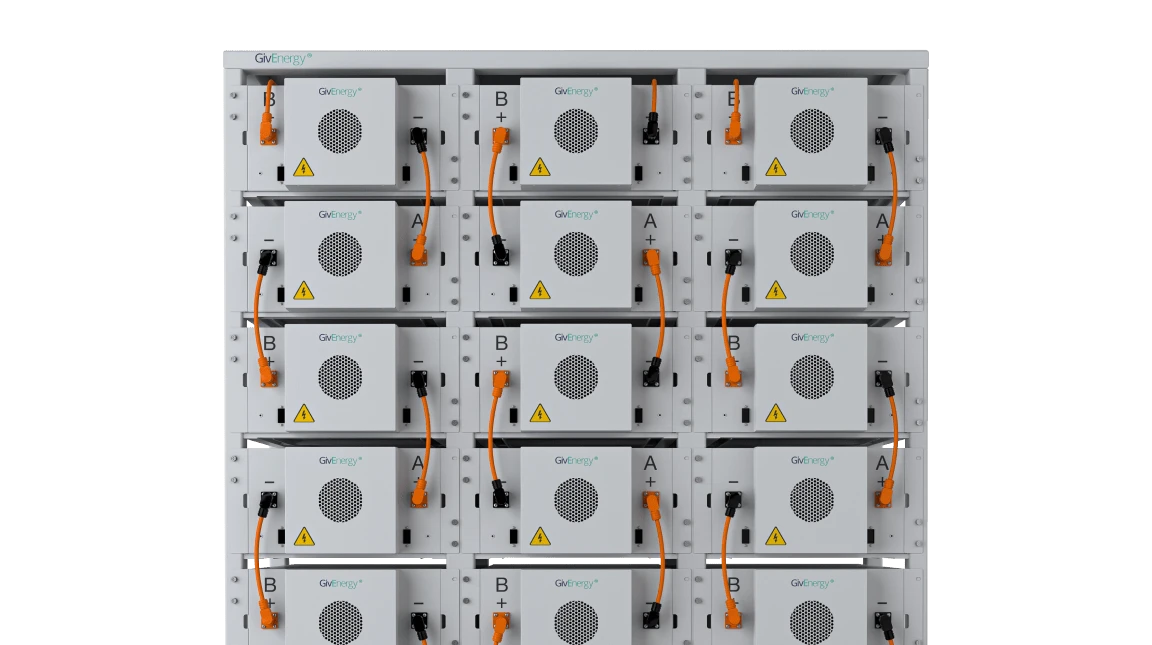

It houses a customisable number of high-voltage GivEnergy battery packs that works seamlessly with the GivEnergy PCS to optimise energy conversion and grid syncing.
With a simple slide-in installation and easily accessible power and data connections, it ensures rapid setup, effortless expansion, and hassle-free maintenance.
LiFePO4 batteries
Known for its thermal stability, consistent performance over many charge/discharge cycles and long cycle life.
Scalable Design
Customise energy storage by combining high-voltage battery packs to reach your desired capacity, from 200 kWh per rack to 600 kWh with a DC cabinet.
Seamless Integration
Pairs seamlessly with GivEnergy’s PCS, up to 0.8C, allowing configurations such as 600 kWh with 500 kW or 2.4 MWh with 2 MW PCS.
Bespoke Flexibility
Size, voltage and capacity can be customised to fit your energy requirements.
Technical Specifications
| General Information | |
|---|---|
| Capacity per Rack | 200kWh (expandable in 600kWh increments with DC cabinet) |
| Cell Technology | LiFePO4 (Lithium Iron Phosphate), cobalt-free, 99% recyclable |
| Depth of Discharge | 80% |
| Battery Pack Voltage | 38.4V DC nominal (range 33.6 - 43.8V DC) |
| Battery Pack Capacity | 10.752kWh per battery pack @25°C |
| Product Dimensions | |
|---|---|
| Battery Rack | |
| Width | 1458mm |
| Depth | 640mm |
| Height | 2050mm |
| Net product weight | 200kg |
| High Voltage Box | |
| Width | 483mm |
| Depth | 692mm |
| Height | 221mm |
| Net product weight | 40kg |
| Battery (10.8kWh) | |
| Width | 483mm |
| Depth | 692mm |
| Height | 221mm |
| Net product weight | 89kg |
