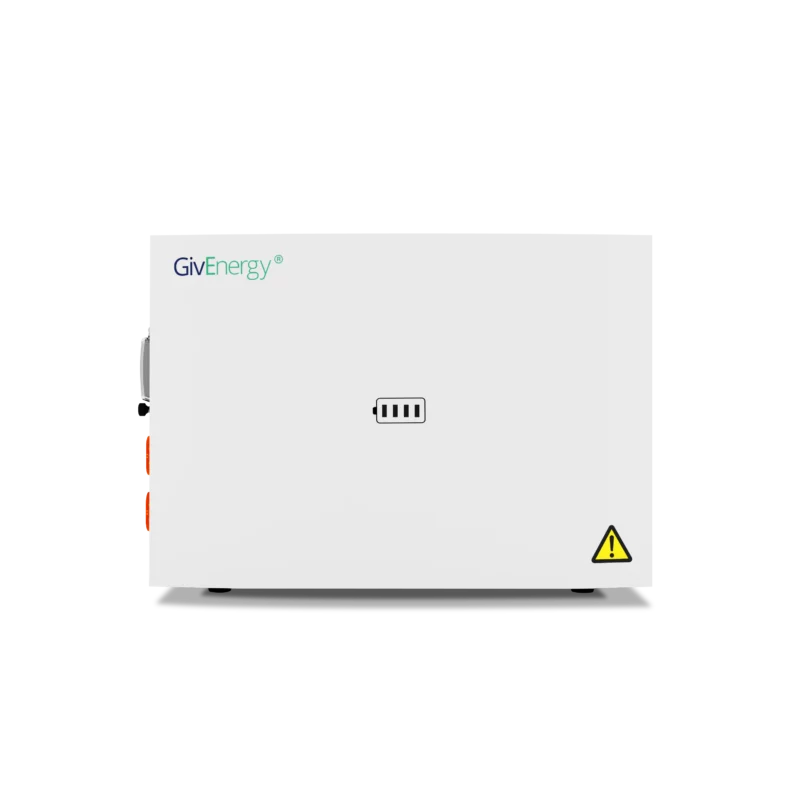

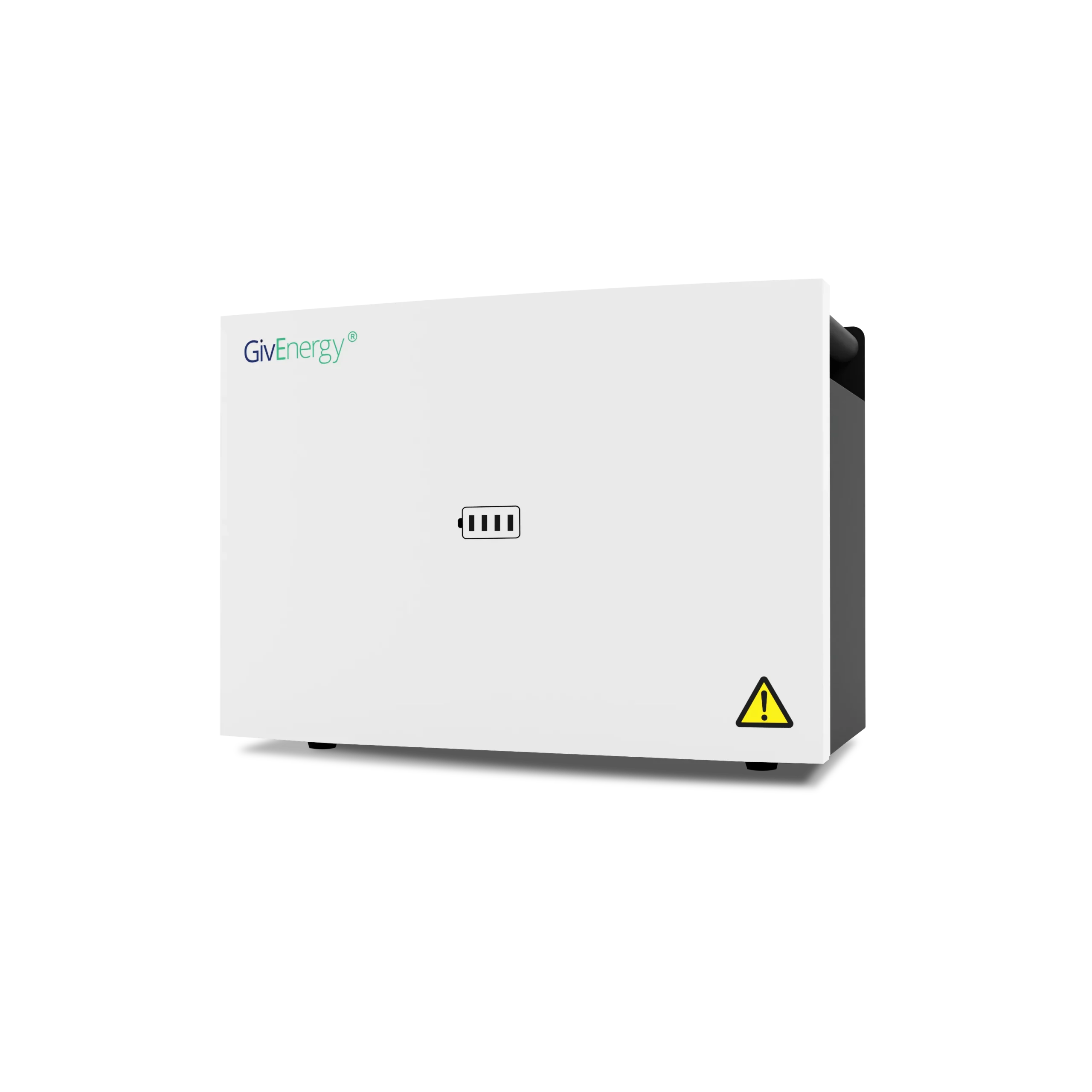

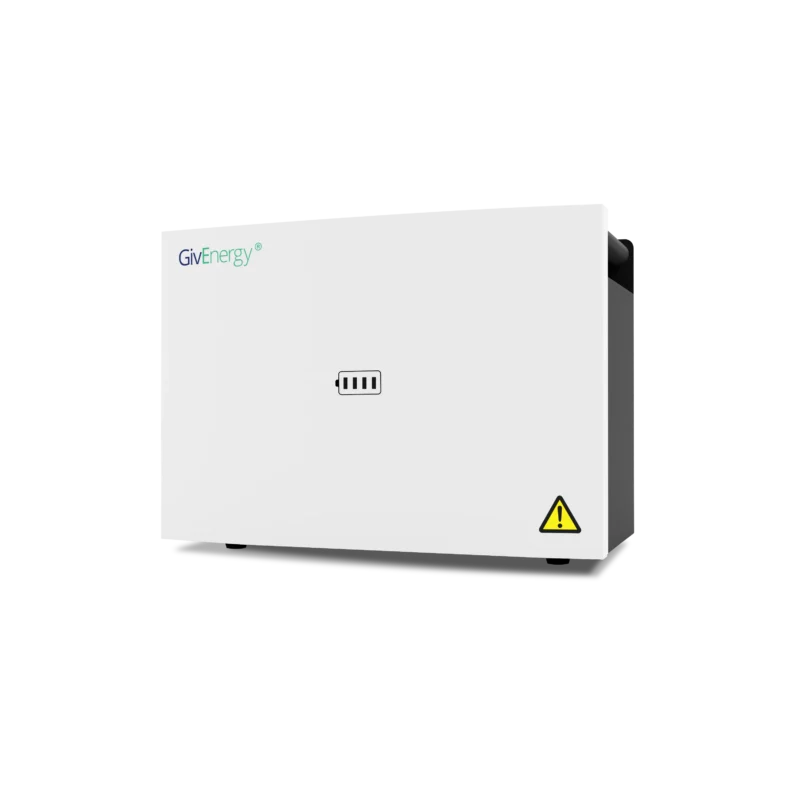

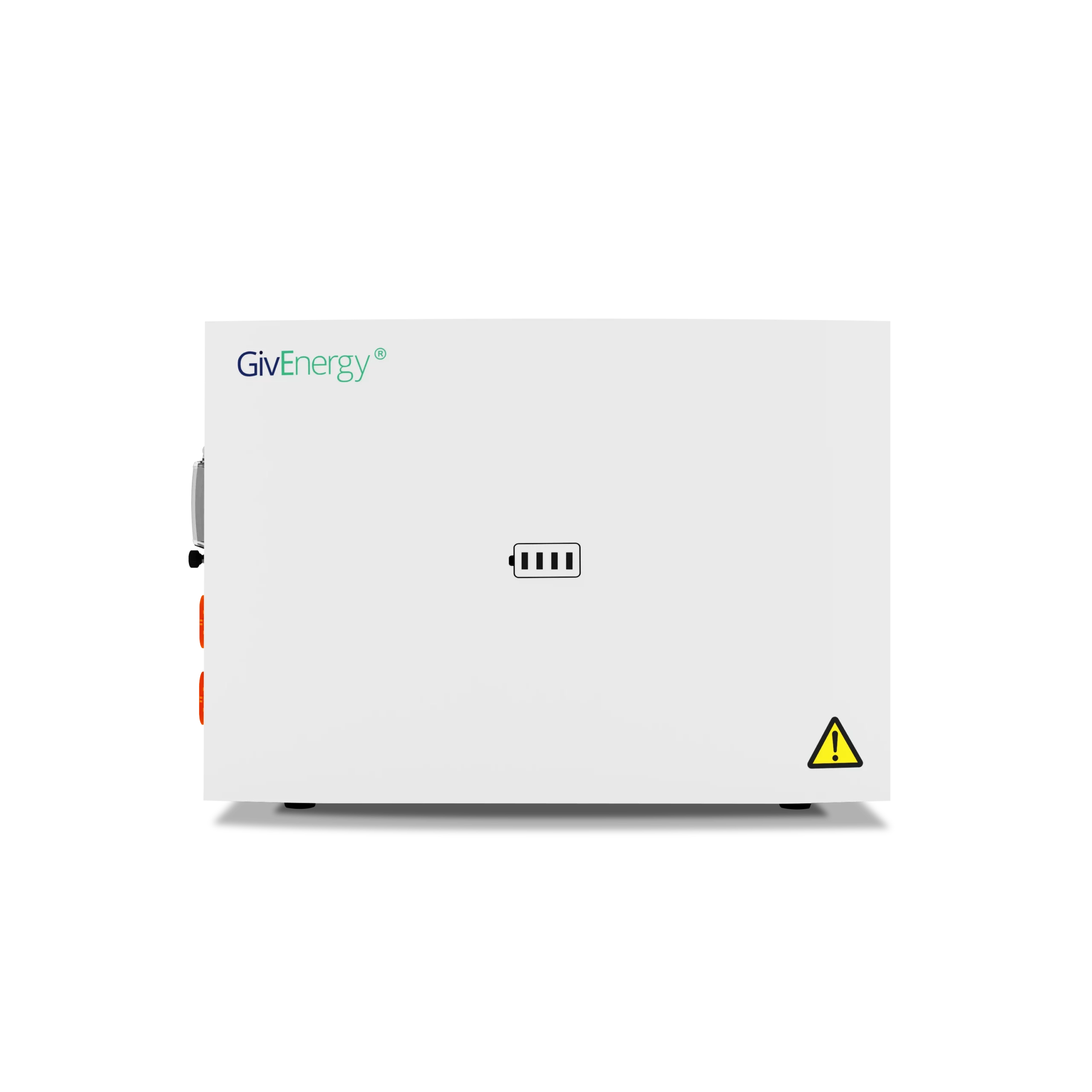

Giv-Bat 5.12 (Low Voltage)
46.4V – 57.6V Voltage range
60A Charge/discharge current
100% Depth of Discharge
IP65 rating
The Giv-Bat 5.2 kWh delivers the ideal balance of capacity and versatility for modern households.
This mid-sized battery empowers you to optimise your energy usage, lower your energy bills, make the most of your solar investment and protect your home from power disruptions.
Future-Proof Scalability
Also available in 2.6kWh and 9.5kWh options, its modular design allows you to expand storage capacity easily as your energy needs grow, ensuring a future-proof investment.
Unlimited Cycles and Longevity
Experience unlimited cycles at 80% Depth of Discharge without compromising the battery's lifespan, backed by a 12-year warranty.
High Charge/Discharge Efficiency
With Max Charge/Discharge rates of up to 80A, these batteries provide rapid energy transfer for high-demand appliances.
Safe and Secure Power
Built with LiFePO4 cell technology, they offer enhanced safety, stability, and non-toxic, eco-friendly performance.
Technical Specifications
| General Information | |
|---|---|
| Capacity | 5.12kWh/100Ah |
| Voltage | 51.2V |
| Max. Charge Current | 3. 0A / 50A |
| Max. Discharge Current: | 30A / 50A |
| Depth of Discharge (DoD) | 80% / 90% |
| Life Cycling (at 80% DoD) | 6000 Cycles |
| Cell Technology | LiFePO4 |
| Communication Protocol: | Modbus / CAN |
| Product Dimensions | |
|---|---|
| Weight | 53Kg |
| Ingress Protection | IP65 |
| Warranty | 12 Years |
| Accesories | |
|---|---|
| Items Included | |
| Battery Module | |
| Wall Mounting Bracket | |
| 4 or 6 Fixing Kit | |
| Cable Pack (Power and Data 2m) | |
| Waterproof Blanking Plug | |
| USB Stick | |
