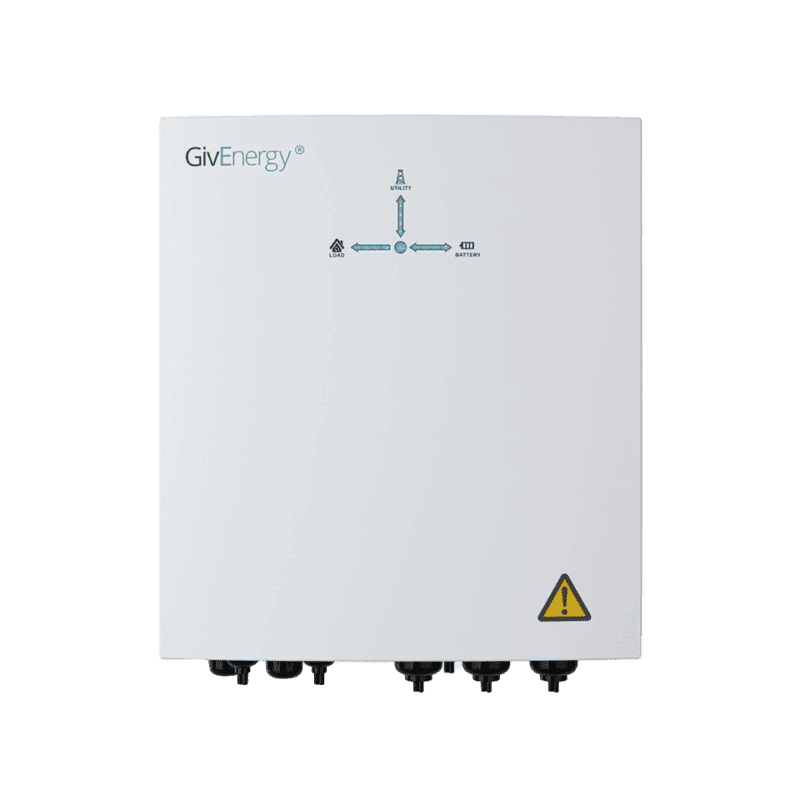

Giv-Gateway
18.4kW Nominal AC power
100A Max AC current
230V Rated grid voltage
180 to 270 AC voltage range
Wi-Fi, LAN and 4G
100A Max AC current
230V Rated grid voltage
180 to 270 AC voltage range
Wi-Fi, LAN and 4G
Seamlessly switch between the grid and battery, GivEnergy’s Giv-Gateway works alongside the All In One to keep your home powered during outages. As a vital connection point for solar PV systems, it ensures uninterrupted energy generation, even when the grid is down.
Reliable Performance
Delivers up to 100A max AC current, providing seamless power for high-demand appliances and larger homes.
Minimalist Design
Compact and pre-installed with an energy meter, it reduces the need for additional components to be installed.
Live Monitoring And Remote Control
In-built Wi-Fi and LAN offers a clear view and control of energy usage, solar generation and battery levels in real-time.
12-Year Warranty
Ensures long-term reliability, durability, and cost savings.
Technical Specifications
| General Information | |
|---|---|
| Whole Home Backup | Provides continuous power during grid failures |
| Nominal AC Power: | 18.4kW |
| Max. AC Current: | 100A |
| Switchover Time: | 1 |
| Warranty | 12 Years |
| Connectivity | WiFi, LAN, 4G, RS485/CAN/LoRa (optional) |
| Rated Grid Voltage (AC Voltage Range) | 230V (180 to 270V) |
| Rated Grid Frequency | 50/60±5Hz |
| Product Dimensions | |
|---|---|
| Ingress Protection | IP65 |
| Pre-installed Energy Meter | |
| Accesories | |
|---|---|
| Items Included | |
| Giv-Gateway | |
| Bracket | |
| 2 x Mounting Screw | |
| 2 x Wall plug | |
| Antenna | |
| Key | |
| 4 x M6 x 12 bracket screw | |
