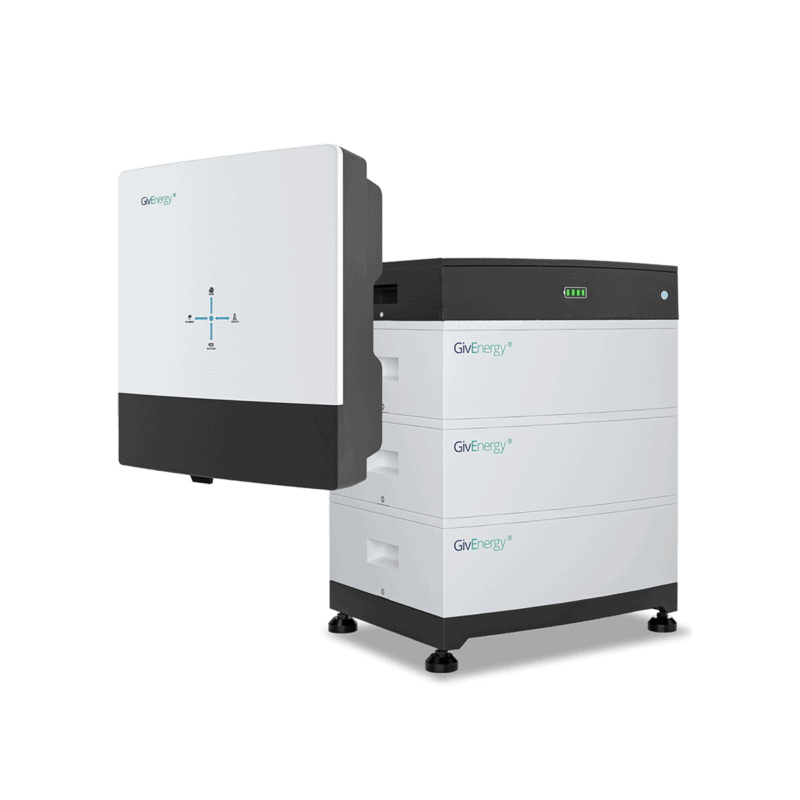

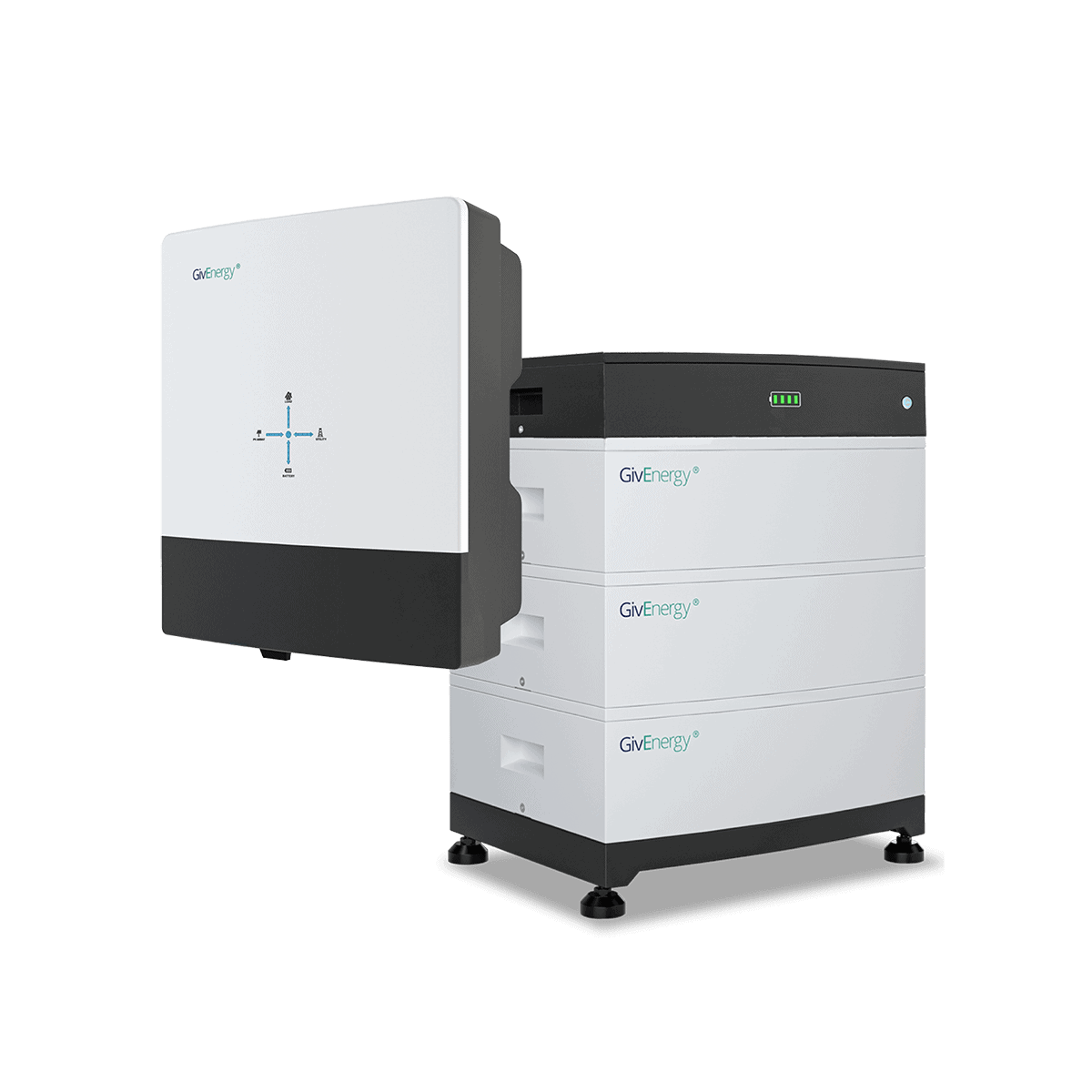

Humber Single-Phase Plus
12kWp MAX PV input
8kW Nominal AC power
10ms Switchover
Dual MPPT trackers
10.2 kWh / 51 Ah Capacity
The Humber Single-Phase Plus, HV Hybrid Inverter 8.0 and Giv-Stack 3, offers a cost-effective entry into energy storage, delivering reliable backup power for everyday essentials and advanced home energy needs.
Ideal for first-time buyers, this compact, high-voltage solution provides peace of mind and the flexibility to scale up as your energy demands grow—all while keeping costs low and offering true grid independence.
Uninterrupted Power
Ultra-fast 10ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Stack on more batteries as your energy needs grow, without the need for complex reinstallations.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
AC Today, Solar Tomorrow
Flexible charging options allow you to charge via the grid or maximise solar energy generation via its built-in four solar string connections with advanced MPPT technology.
Technical Specifications
| General Information | |
|---|---|
| Nominal AC Output Power | 8kW |
| Battery Capacity | 10.2kWh / 51Ah |
| Max. Charge / Discharge Power | 8000W / 8500W |
| MPPT Range | 90V - 550V |
| Battery Voltage Range | Hybrid Inverters: 120-510V High Voltage Batteries: 200 - 600V |
| Max. DC Input Power | 15kW |
| Depth of Discharge (DoD) | 100% |
| Warranty | 12 Years |
| Ingress Protection | - |
| Communications Interfaces | WiFi, LAN, CAN BUS |
| Product Dimensions | Hybrid Inverter 8.0 |
|---|---|
| Width | 480mm |
| Depth | 214mm |
| Height | 588mm |
| Net product weight | 36kg |
| High Voltage Batteries 3 | |
| Width | 480mm |
| Depth | 380mm |
| Height | 635mm |
| Net product weight | 119.8kg |
| Accesories | Hybrid Inverter |
|---|
| Inverter |
| 2x Bolt to Secure Inverter to Mounting Bracket |
| 5x Mounting Bracket Fixings |
| Stackable Battery |
| Base Plate |
| HV Box |
| Cable Inverter to HV Box |
| Template / Position Part |
| 2 x Wall Bolts |
| 2 x M6 Scews |
| Plug to Plug Cable with Grommet |
| 3 x Battery |
| Giv-Bat HV Kit |
| 2 x Screws |
