Humber Three-Phase Max
15kWp MAX PV input
11kW Nominal AC power
20ms Switchover
16.5A Max output current
20.4kWh / 51Ah Capacity

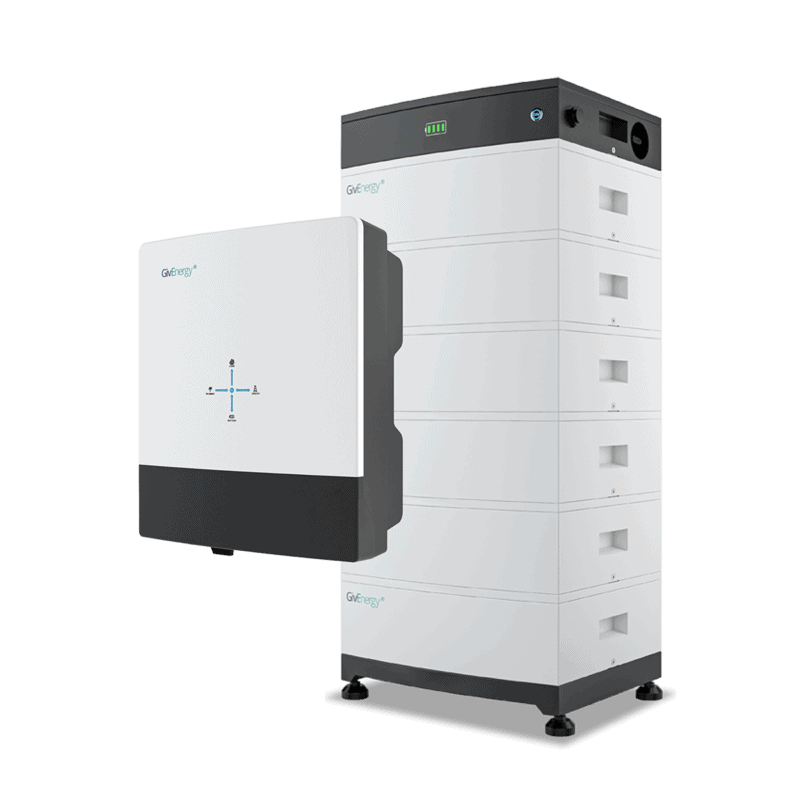

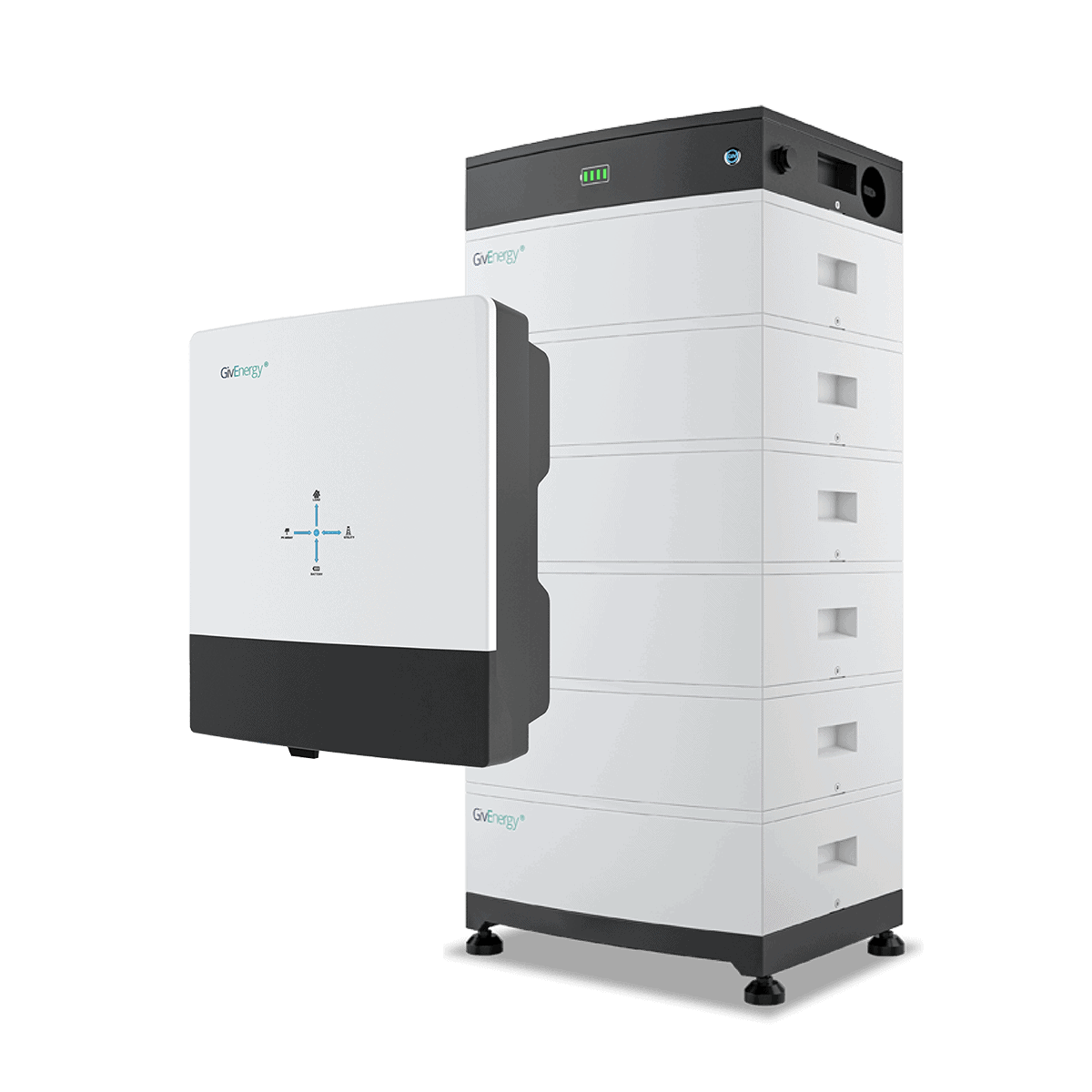

Built for small businesses or energy-intensive homes, the Humber Three-Phase Max combines an 11kW Hybrid Inverter with a Giv-Stack 6.
Delivering advanced energy management, high-capacity storage, and exceptional performance across demanding loads, this Collection helps you maximise solar self-consumption and significantly reduce energy bills.
Uninterrupted Power
Fast 20ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Stack on more batteries as your energy needs grow, without the need for complex reinstallations.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
AC Today, Solar Tomorrow
Flexible charging options allow you to charge via the grid or maximise solar energy generation via its built-in four solar string connections with advanced MPPT technology.
Technical Specifications
| General Information | |
|---|---|
| Nominal AC Output Power | 11kW |
| Battery Capacity | 20.4kWh / 51Ah |
| Max. Charge / Discharge Power | 11kW / 11kW |
| Charge/Discharge Current: | 25A |
| MPPT Range | 200V - 850V |
| MPPT Tracker/No. of Strings per tracker: | 2/1 |
| Battery Voltage Range | Hybrid Inverter: 200 - 800V High Voltage Batteries: 200 - 600V |
| Max. DC Input Power | 15kW |
| Depth of Discharge (DoD) | 100% |
| Warranty | 12 Years |
| Communications Interfaces | WiFi, LAN, CAN BUS |
| Product Dimensions | Hybrid Inverter 8.0 |
|---|---|
| Width | 480mm |
| Depth | 214mm |
| Height | 588mm |
| Net product weight | 36kg |
| High Voltage Batteries 6 | |
| Width | 480mm |
| Depth | 380mm |
| Height | 1085mm |
| Net product weight | 226.3kg |
| Accesories | Hybrid Inverter |
|---|
| Inverter |
| 2x Bolt to Secure Inverter to Mounting Bracket |
| 5 x Mounting Bracket Fixings |
| Stackable Battery |
| Base Plate |
| HV Box |
| Cable Inverter to HV Box |
| Template / Position Part |
| 2 x Wall Bolts |
| 2 x M6 Scews |
| Plug to Plug Cable with Grommet |
| 6 x Battery |
| Giv-Bat HV Kit |
| 2 x Screws |
