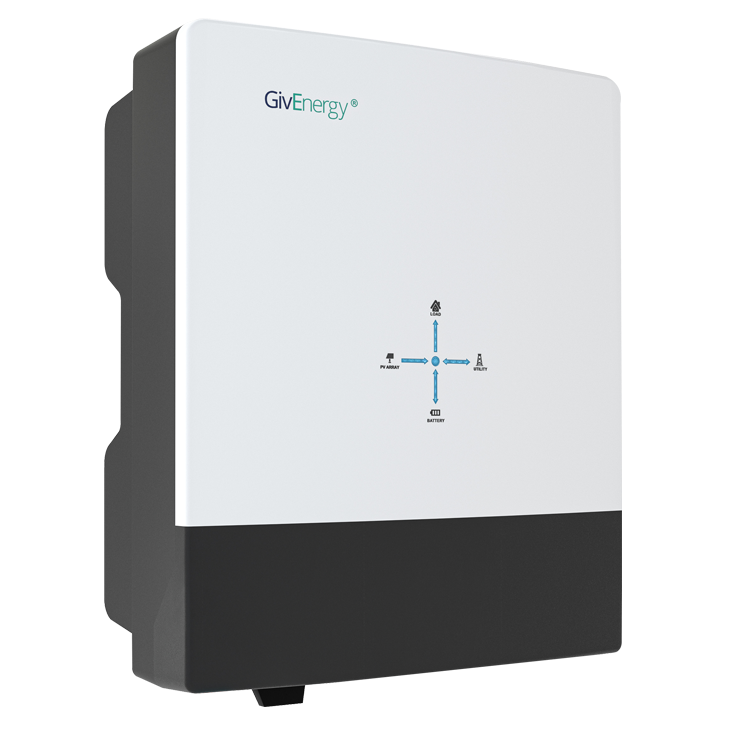

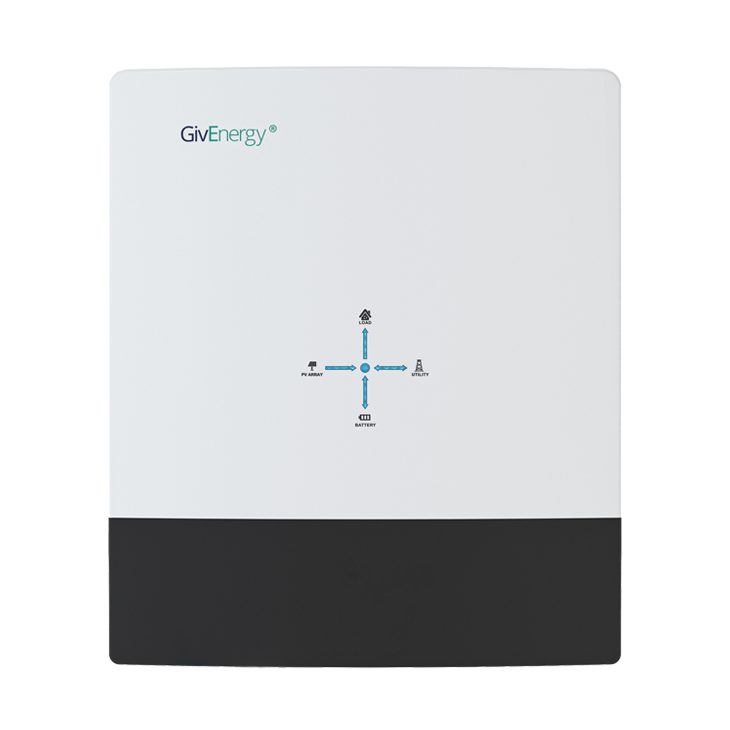

Hybrid Inverter 10.0 – High Voltage (Single Phase)
15kWp MAX PV input
10kW Nominal AC power
10ms Switchover
Dual MPPT trackers
AC or solar, this high voltage inverter maximises energy usage and keeps essential appliances running during outages, while keeping energy bills low.
When paired with the long-lasting and fire-resistant GivEnergy High Voltage Batteries, it offers up to 81.6kWh of storage—enough to power a medium-sized home for 1.5 weeks.
No More Blackouts
Switchover to battery in <20ms, keeps essential loads running if the grid fails.
AC Now, Solar Later
Designed for both AC and solar compatibility, allowing you to start with grid charging and seamlessly transition to solar when ready.
High Pass Through Current
Ensures that high-demand essential appliances (heat pumps, EV chargers, air conditioning) remain operational even in backup mode.
Scalable Design
Expand battery capacity (up to 80kWh) based on your evolving needs.
Technical Specifications
| General Information | |
|---|---|
| Max. DC Input Power | 15kWp |
| Nominal AC Output Power | 8kW |
| Max. Input Current (per string) | 25A |
| Max. Apparent Power | 10kVA / 11kVA |
| Battery Nominal Voltage | 340VDC |
| Max. Output Current | 8kW |
| Max. Charge / Discharge Power | 8kW |
| MPPT Range | 90v - 550v |
| Max. Input Current (Per) | 25A |
| Startup Voltage | 80V |
| Product Dimensions | |
|---|---|
| Dimensions | 588H x 214D x 480W (mm) |
| Weight | 36Kg |
| Ingress Protection | IP65 |
| Accesories | |
|---|---|
| Items Included | |
| 5 x Mounting Bracket Fixings | |
| Mounting Bracket | |
