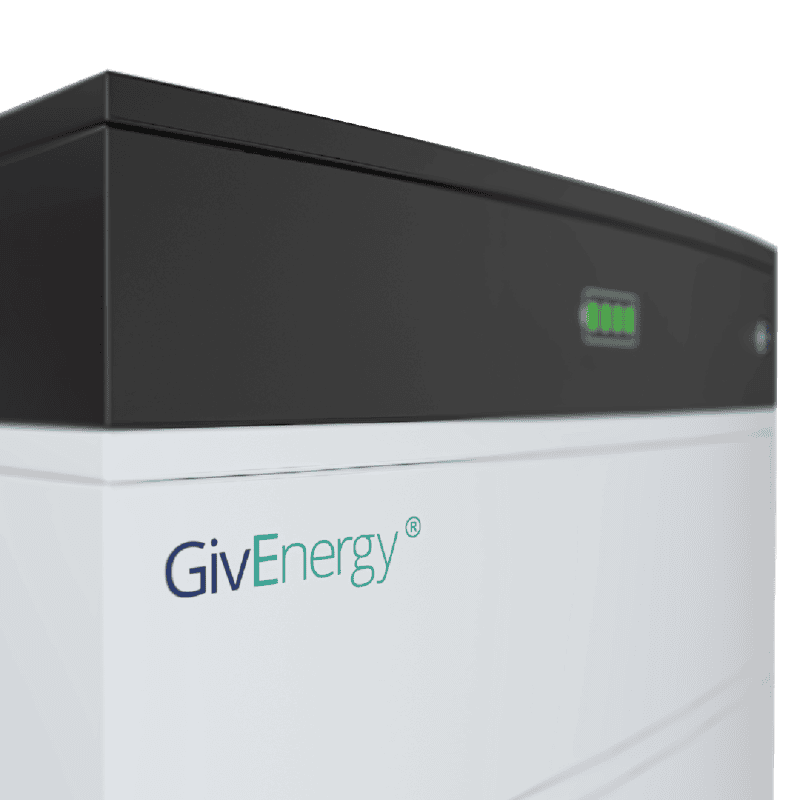

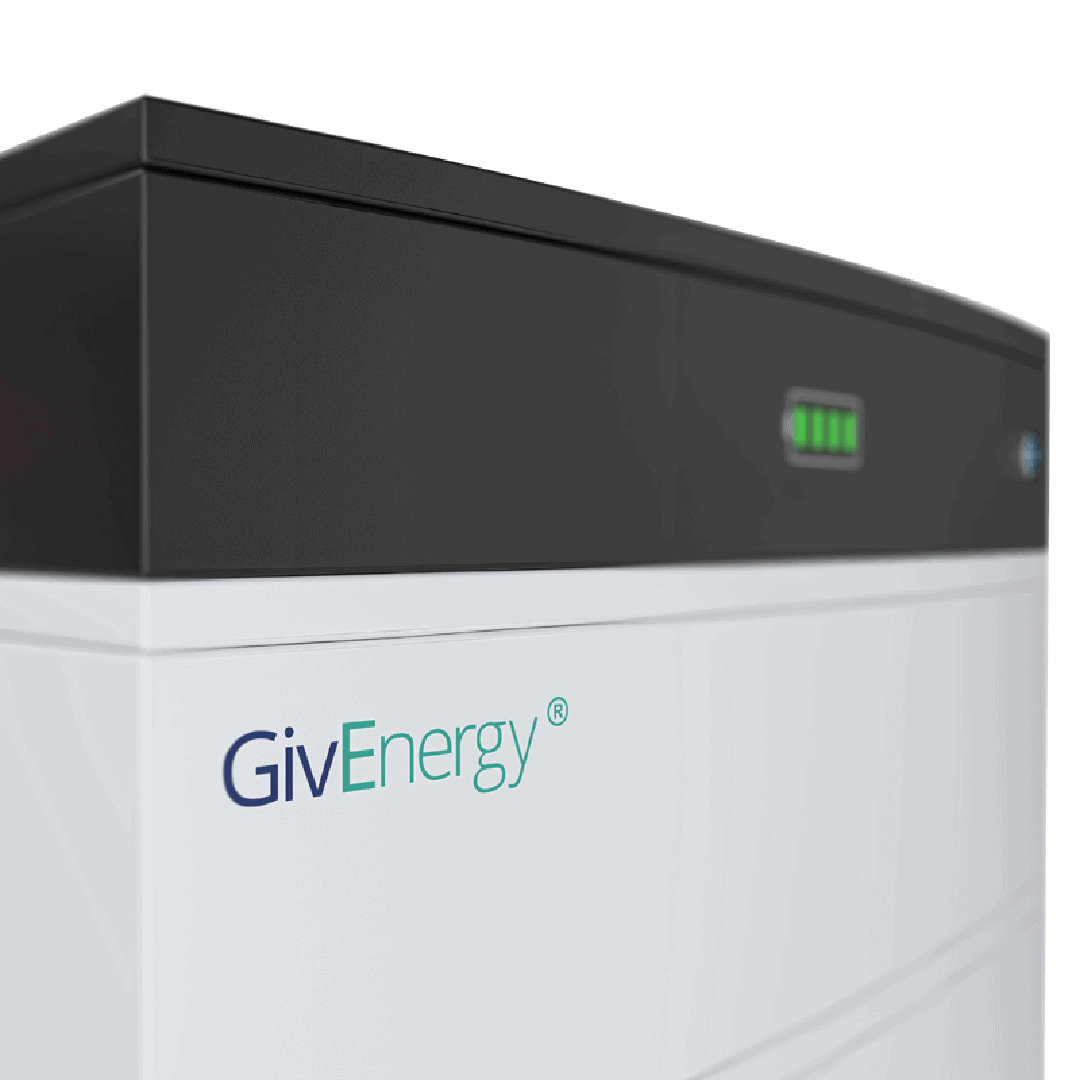

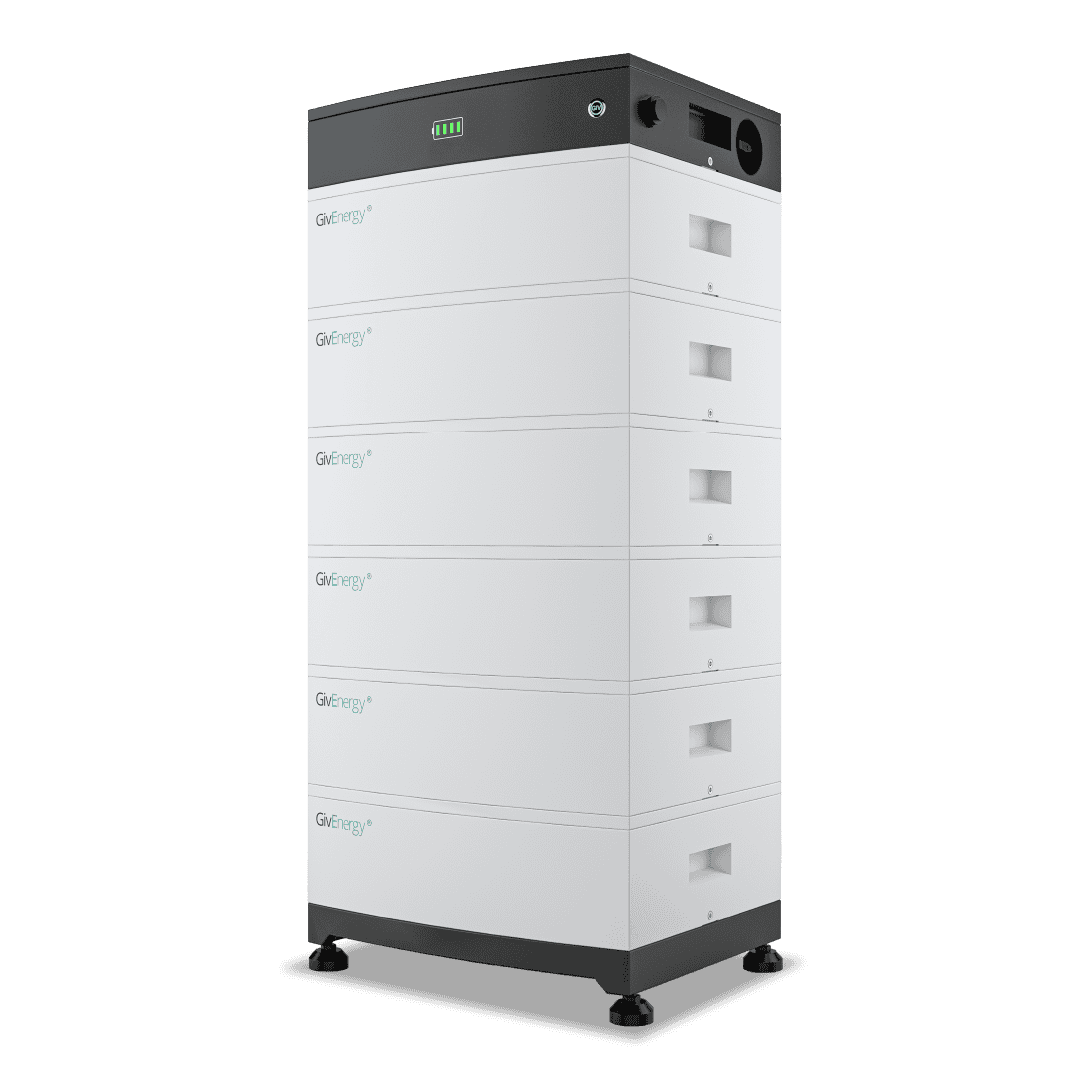

Giv-Stack 6 (High Voltage)
200 – 600V Voltage range
25A Max charging/discharging current
100% Depth of Discharge
IP65 weatherproof, indoor/outdoor
Unlock unmatched energy independence with the High Voltage Batteries 6. Designed for flexibility, this safe and durable LiFePo4 modular battery system allows you to start with a single 20.4kWh unit and expand up to 81.6kWh as your needs grow.
Whether you’re storing surplus solar energy or preparing for potential outages, this battery ensures your home can run for days. Plus, with a 12-year warranty, you can enjoy long-term peace of mind while maximising your energy savings.
High Voltage and Efficiency
Operating within a 200–600V range, they ensure more efficient charging and discharging, optimising energy use and minimising power loss.
Unmatched Durability
Unlimited cycles at 100% Depth of Discharge under a 12-year warranty, ensures a long-lasting performance.
Modular Storage
Start with 6 (20.4kWh) and expand, up to 81.4kWh, to meet your growing energy needs.
Intelligent Energy Management
Seamlessly integrates with the GivEnergy ecosystem for real-time monitoring, optimising energy usage and savings.
Technical Specifications
| General Information | |
|---|---|
| Capacity (kWh): | 20.4kWh |
| Nominal Voltage: | 460VDC |
| Operating Voltage Range | 200-600V |
| Maximum Charging Voltage | 525V |
| Max Charge / Discharge Current | 25A |
| Standard Charge/Discharge Rate: | 0.5C |
| Cell Technology | LiFePO4 |
| Communication Protocol | CAN BUS |
| Weight | 226.3Kg |
| Warranty | 12 Years |
| Product Dimensions | |
|---|---|
| Dimensions (H x D x W) | 1085H x 380D x 480W (mm) |
| Accesories | |
|---|---|
| Items Included | |
| Base Plate | |
| HV Box | |
| Cable Inverter to HV Box | |
| Cable Pack (Power and Data 2m) | |
| Template / Position Part | |
| 2 x M6 Screws | |
| 2 x Wall Bolts | |
| Plug to Plug Cable with Grommet | |
| 6x Battery | |
| 2 x Wall Bolts | |
| Giv-Bat HV Kit | |
| 2 x Screws | |
