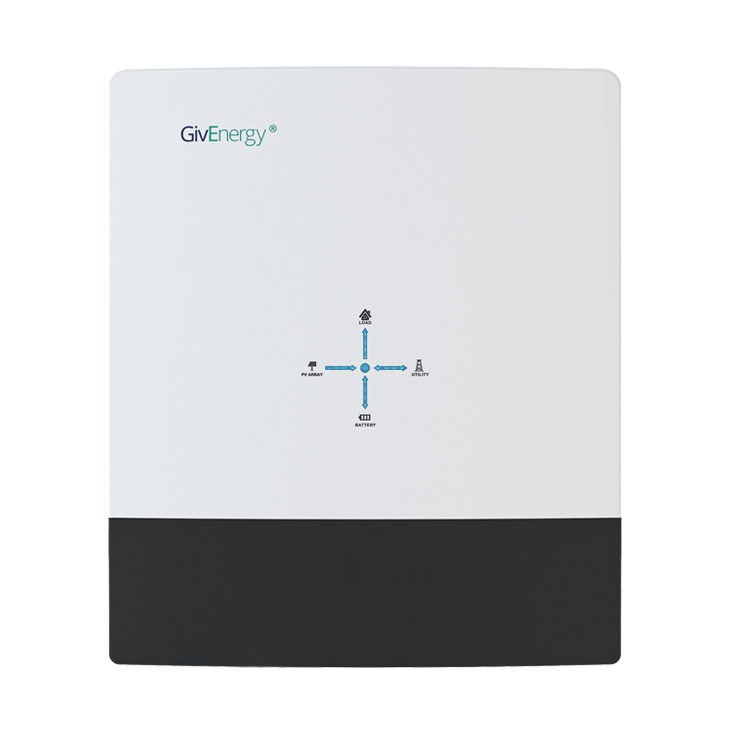

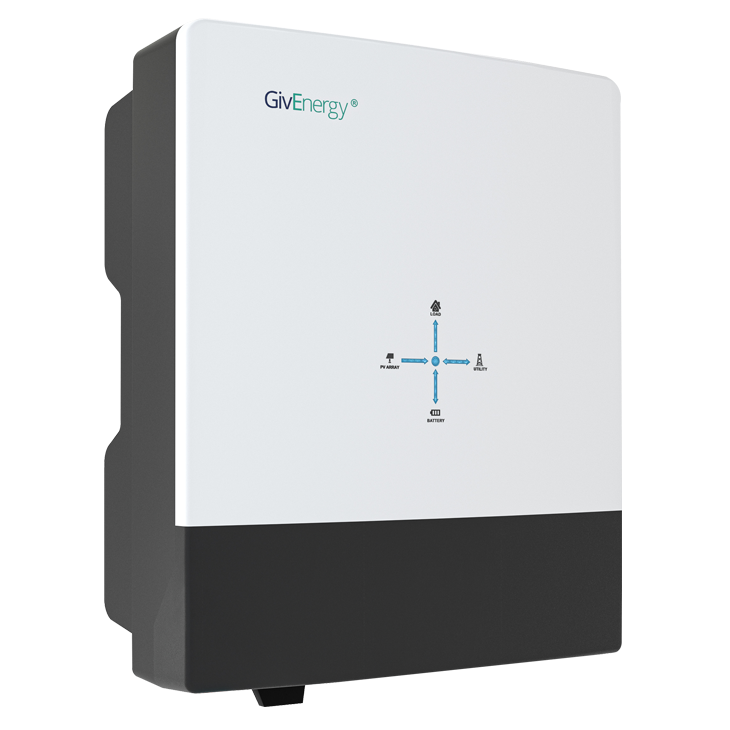

Hybrid Inverter 6kW – High Voltage (3 Phase)
600V Nominal voltage
10.5A Max output current
9kWp Max PV input
200V – 850V MPPT range
The 6kW Three-Phase Hybrid Inverter is our most cost-efficient three-phase solution, delivering stable, balanced power for homes. With on/off-grid phase balancing, 99.9% MPPT efficiency, and 20ms switchover, it ensures reliable backup and smart solar usage, day or night.
G98 certified, it keeps DNO paperwork to a minimum, speeding up installation and approval. Pair this with the Giv-Stack for a truly flexible, future-ready energy system.
No More Blackouts
Switchover to battery in <20ms, keeps essential loads running if the grid fails.
AC Now, Solar Later
Designed for both AC and solar compatibility, allowing you to start with grid charging and seamlessly transition to solar when ready.
High Pass Through Current
Ensures that high-demand essential appliances (heat pumps, EV chargers, air conditioning) remain operational even in backup mode.
Seamless 3-Phase Integration
Work effortlessly with solar, battery storage, and grid power, ensuring smooth energy management and improved energy resilience.
Technical Specifications
| General Information | |
|---|---|
| Nominal AC Output Power | 6kW |
| Max. DC Input Power | 9kWp |
| MPPT Voltage Range | 9kWp |
| Battery Voltage Range | 200VDC - 600VDC |
| Max. Charge / Discharge Power | 6kW |
| Max. Input Current (per string) | 15A |
| Max. Output Current (to Grid) | 10.5A |
| Automatic Switch Time | <20ms |
| MPPT Trackers/Strings per MPPT | 2/1 |
| Product Dimensions | |
|---|---|
| Dimensions | 658H x 214D x 480W (mm) |
| Weight | 35Kg |
| Ingress Protection | IP65 |
| Accesories | |
|---|---|
| Items Included | |
| Mounting Bracket | |
| 2x Bolt to Secure Inverter to Mounting Bracket | |
| 5x Mounting Bracket Fixings | |
