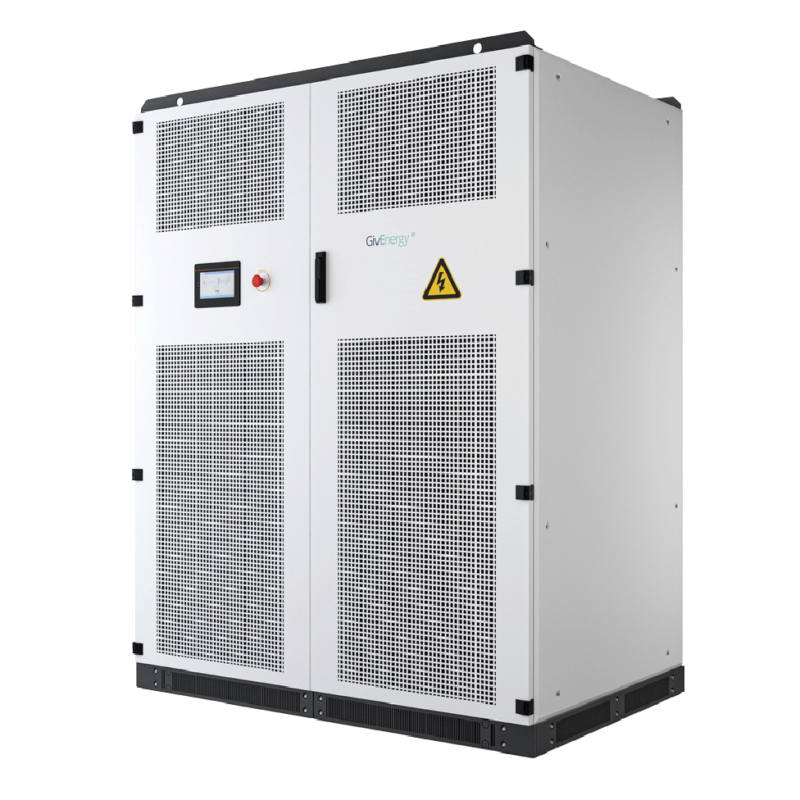

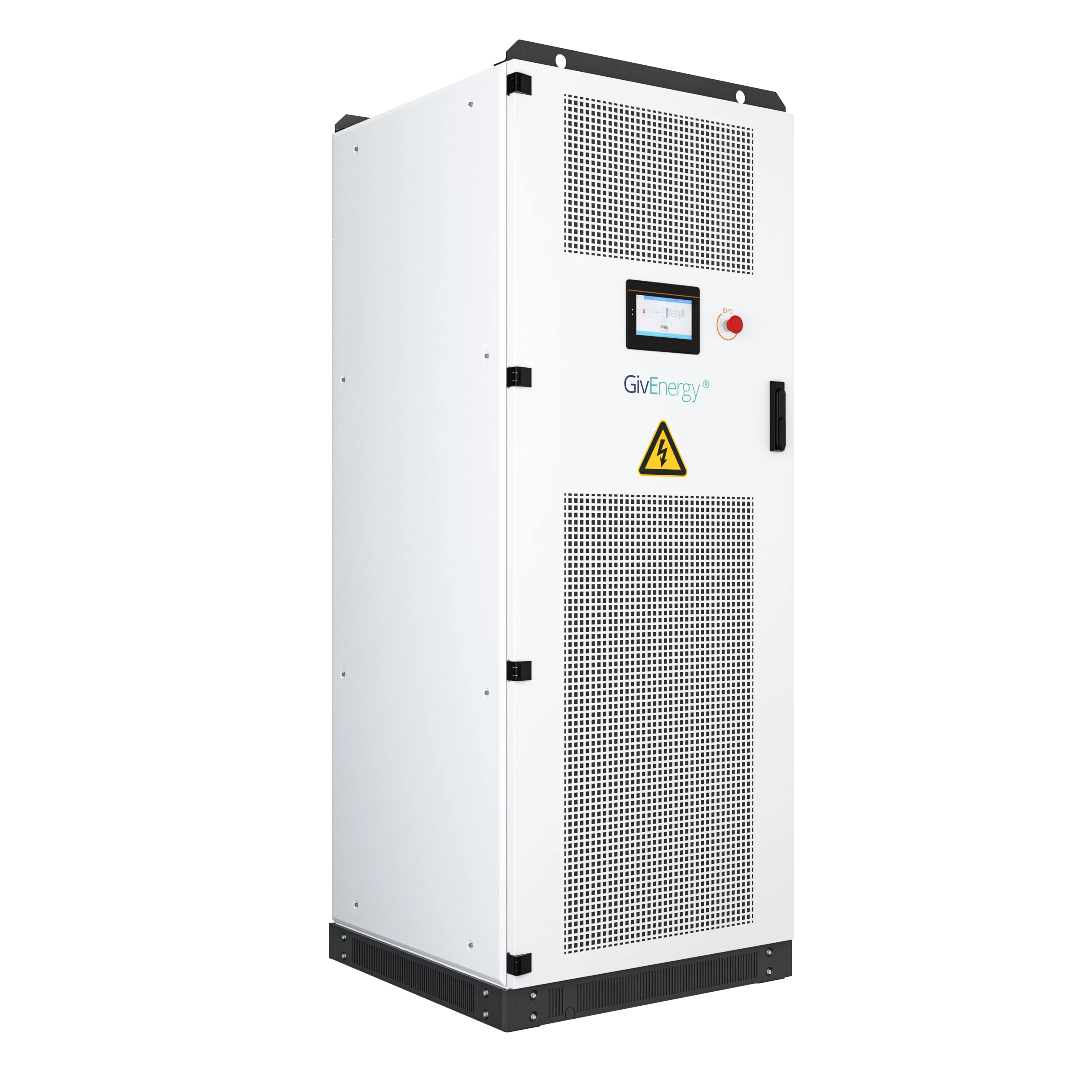

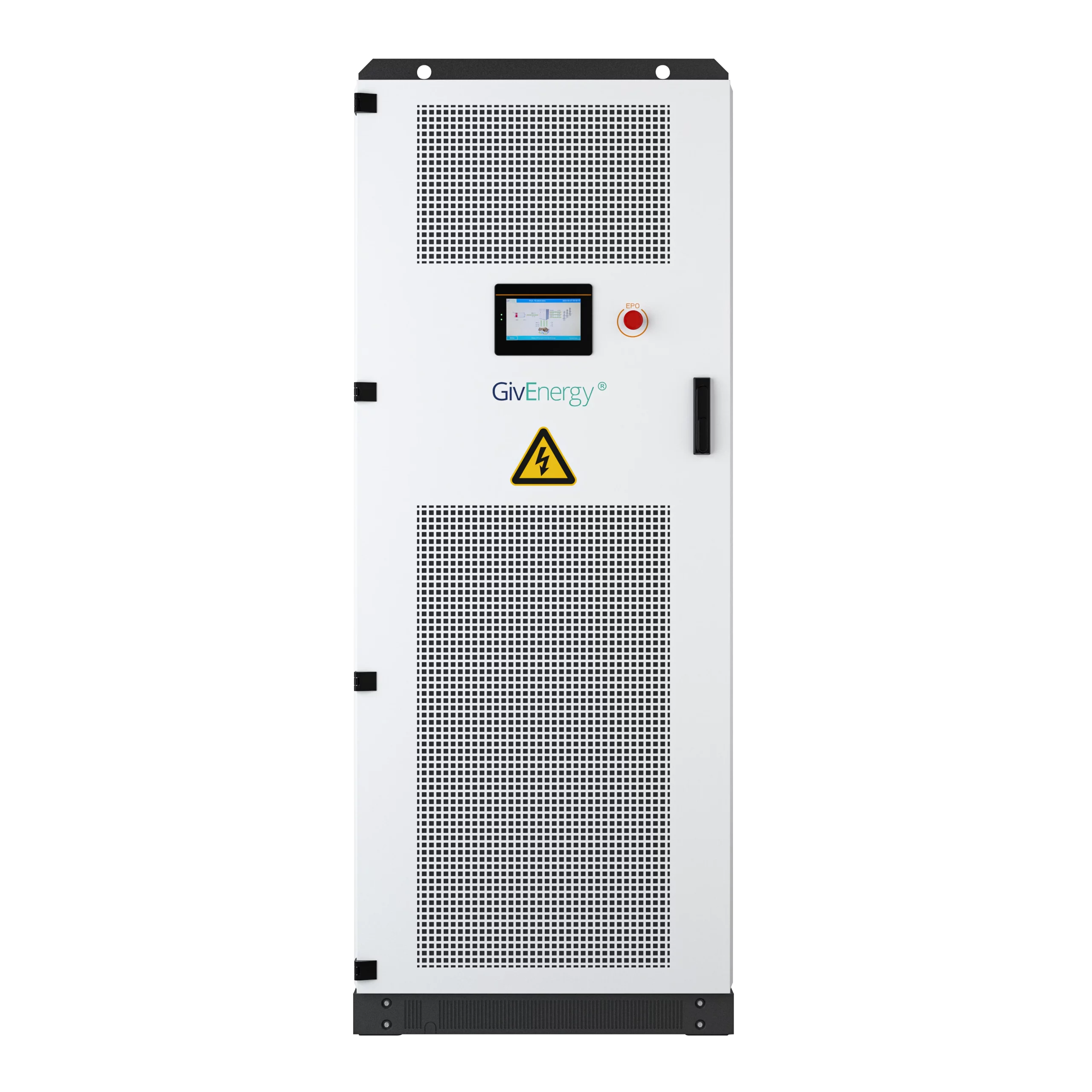

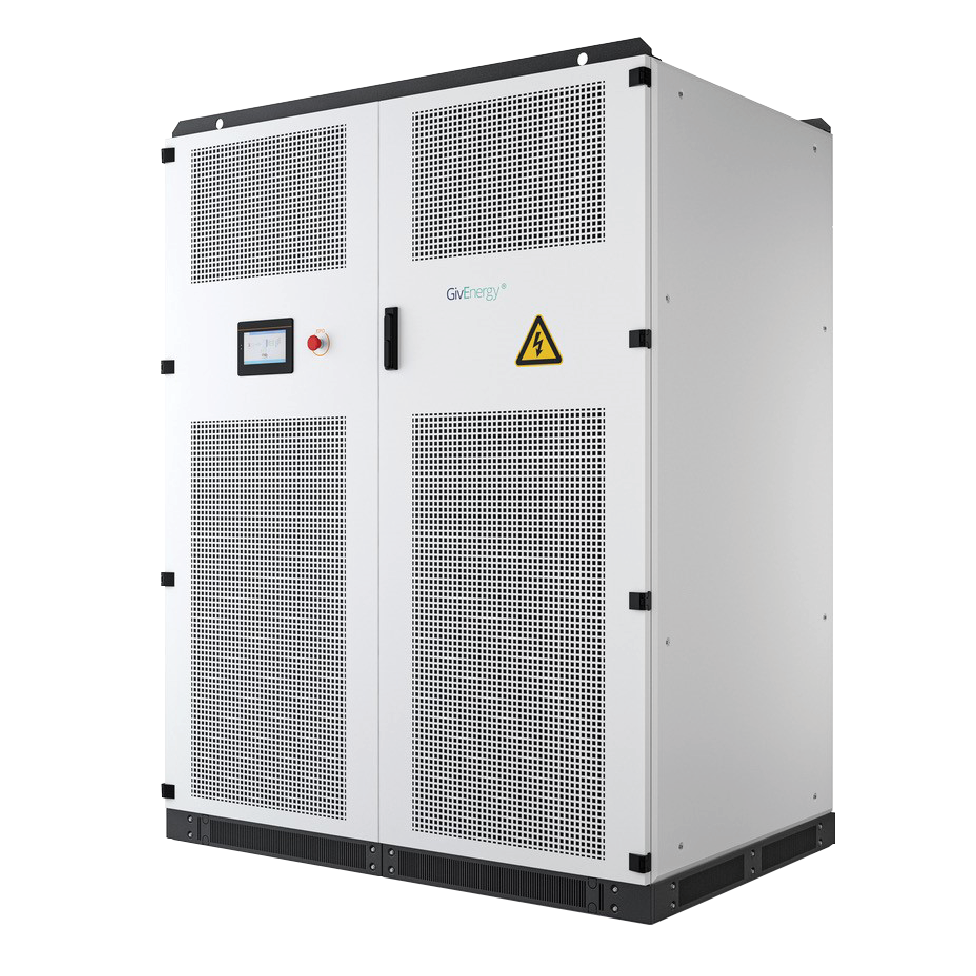

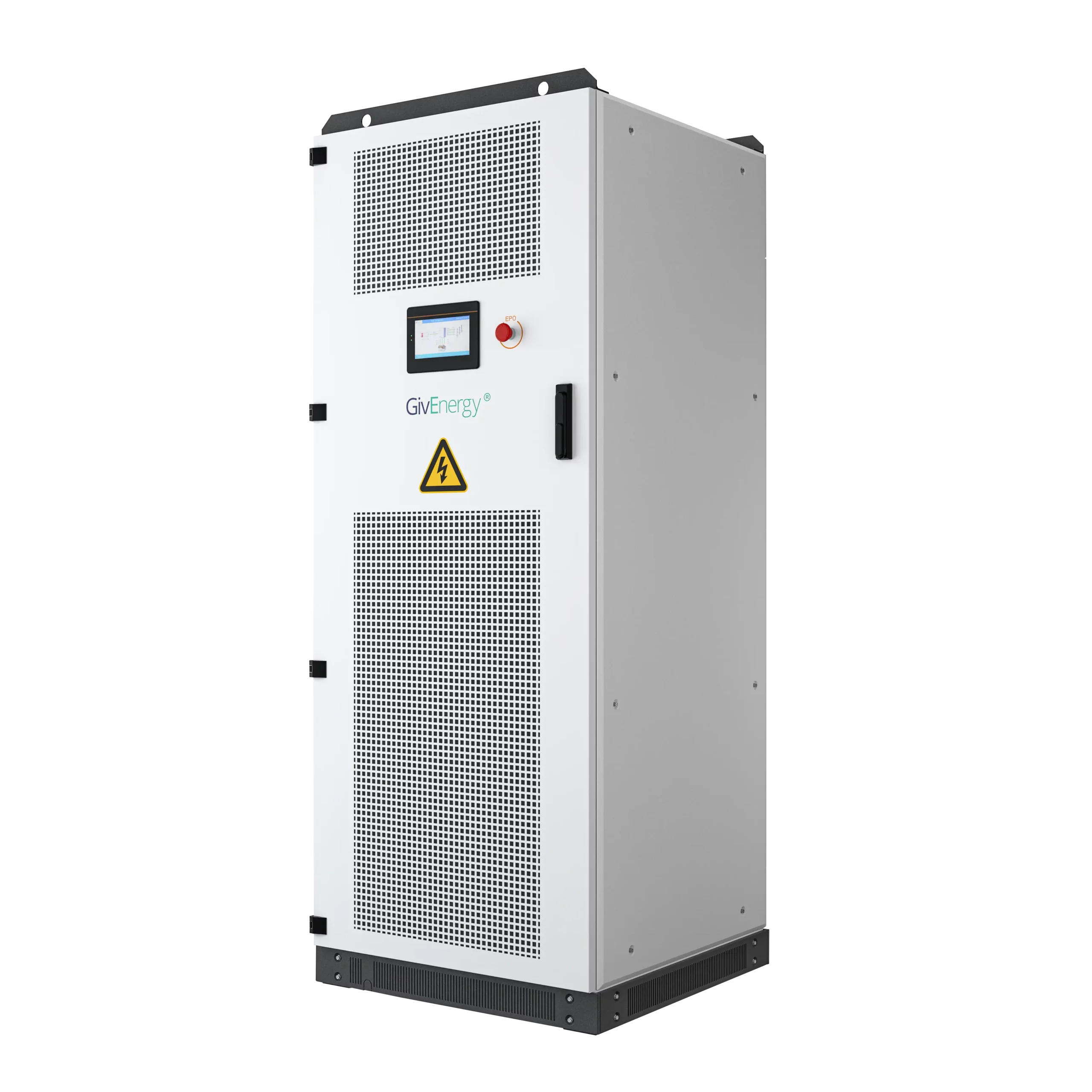

Commercial Power Conversion System (PCS)
300V to 850V Battery voltage range
Max 800A output current
-30°C – 55°C Operational temp
IP21 rated, indoor
The Power Conversion System (PCS) is a high-performance bidirectional inverter that effortlessly converts energy between AC and DC, and optimise power flow for commercial and industrial applications.
With scalable capacity from 30kW to 500kW, and a wide AC/DC voltage range, it enables businesses to integrate battery storage, manage peak demand, and enhance energy resilience.
Wide Range of Models
Available in 30kW, 50kW, 100kW, 150kW, 250kW, and 500kW models, to suit a wide range of commercial and industrial applications.
High Efficiency
Delivers up to 97.5% efficiency, minimising energy loss and maximising cost savings.
Broad Voltage Spectrum
Supports a broad battery voltage range from 300V to 850V, with some models allowing up to 500-850V.
Seamless Grid Transition
Switches between on-grid and off-grid modes with manual or optional automatic transfer, ensuring uninterrupted power during outages or grid fluctuations.
Technical Specifications
| General Information | |
|---|---|
| Power Ratings | Available in 30kW, 50kW, 100kW, 150kW, 250kW, and 500kW models |
| Efficiency | Ranges from 96.3% to 97.5%, depending on the model |
| Battery Voltage Range | 300V - 850V for most models, with slight variations for higher capacity units |
| Grid Compatibility | Rated voltage 400V, frequency 50/60Hz |
| IP Rating | IP21 |
| Operational Temperature | -30°C to 55°C |
| Communication Interfaces | RS485, CAN, TCP/IP |
| Display | Touch Screen LCD |
| On/Off Grid Transfer | Manual (default) with Automatic option |
| Total Harmonic Distortion | <3% (THDi, Rated Power) |
| Product Dimensions | 30kW |
|---|---|
| Width | 800mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 600kg |
| 50kW | |
| Width | 800mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 650kg |
| 100kW | |
| Width | 800mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 910kg |
| 150kW | |
| Width | 800mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 950kg |
| 250kW | |
| Width | 1200mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 1,350kg |
| 500kW | |
| Width | 1600mm |
| Depth | 1050mm |
| Height | 2050mm |
| Net product weight | 2,460kg |
