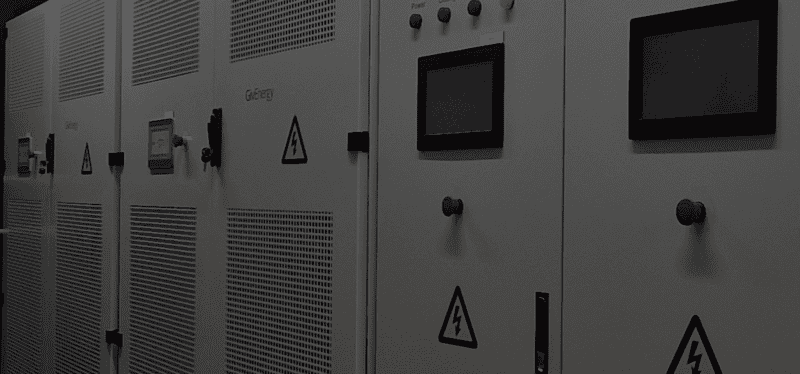

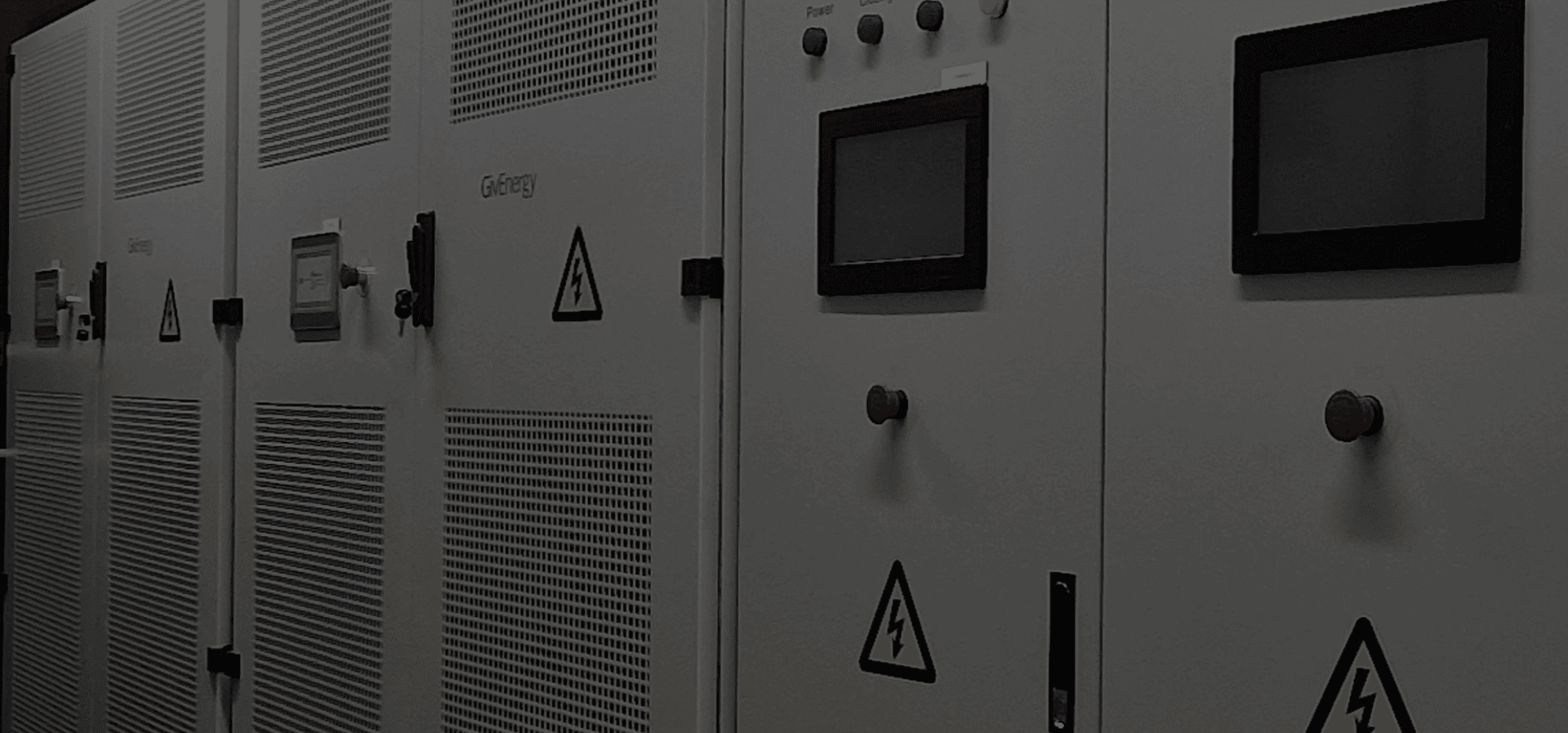

Commercial SME Battery Cabinet
600-800VDC range
691.2VDC Nominal Voltage
80% Depth of Discharge
Built-in BUS system
A scalable energy storage solution designed to help small and medium sized businesses optimise power usage, reduce costs, and enhance energy resilience.
The SME Battery Cabinet features usable storage ranging from 69kWh to 276kWh, adapting to growing energy demands while integrating seamlessly with GivEnergy’s Power Conversion System (PCS).
LiFePO4 batteries
Known for its thermal stability, consistent performance over many charge/discharge cycles and long cycle life.
High Capacity & Scalability
Start with 69kWh and expand up to 276kWh by connecting up to four cabinets, ensuring flexible storage solutions that grow with your business.
High Voltage and Efficiency
With a voltage range of 600–800V DC, it is engineered for high efficiency and reliable power delivery.
Seamless Integration
Pairs seamlessly with GivEnergy’s PCS, ranging from 30 to 100kW, ensuring efficient energy conversion and reliable power supply.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 69kWh per cabinet, expandable up to 276kWh with 4 cabinets |
| Cell Technology | LiFePO4 (Lithium Iron Phosphate), cobalt-free and 99% recyclable |
| Voltage Range | 600-800V DC (cabinet), 68-87V DC (individual battery) |
| Dimensions | 2050H x 800D x 600W mm (cabinet) |
| Depth of Discharge | 80% |
| Operating Temperature | 0°C to 55°C |
| Communication Protocols | CAN bus and RS485 |
| IP Rating | IP20 |
| Warranty | 10 years or 70% remaining capacity after 10MWh per kWh throughput |
| Product Dimensions | |
|---|---|
| Cabinet | |
| Width | 600mm |
| Depth | 800mm |
| Height | 2050mm |
| Net product weight | 72kg |
| High Voltage Box | |
| Width | 452mm |
| Depth | 664mm |
| Height | 134mm |
| Battery (7.6kWh) | |
| Width | 452mm |
| Depth | 664mm |
| Height | 134mm |
