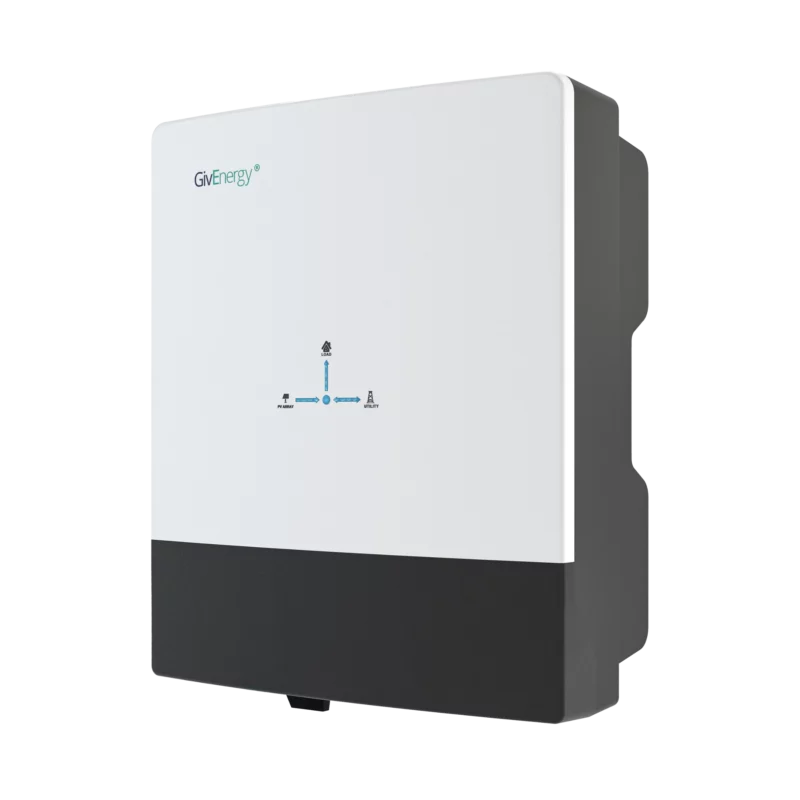

String Inverter 3.6 (Single Phase)
3.6kW Nominal AC Power
17A Max input current
16A Max output current
Dual MPPT trackers
90V-550V MPPT range
17A Max input current
16A Max output current
Dual MPPT trackers
90V-550V MPPT range
Efficiently convert AC generated by your solar array to DC power with the GivEnergy String Inverter.
It features advanced AFCI technology for superior protection, built-in WiFi and LAN for a stable connection, and remote update and control capabilities—ensuring smarter, safer, and more reliable energy management.
Power Up with High Output
Supports up to 17A per string, ensuring maximum energy harvest.
Optimised Solar Performance
Dual MPPT trackers with an efficiency rate of 99.9%, balances power generation across different roof orientations.
Consistent and Reliable Power
Delivers a robust Nominal AC Output Power of 3.6kW, able to power a wide range of household applications.
Efficient Energy Transfer
Supports a max AC current of 16A, ensuring optimal energy transfer to your home for efficient usage.
Technical Specifications
| General Information | |
|---|---|
| Nominal Output Current | 3.6kW |
| Max. output current | 16A (3.6kW) |
| Max. PV Input Current (per string) | 17A |
| Max. PV Voltage | 600V |
| MPPT voltage range | 90V-550V |
| Number of MPPTs | 2 |
| PV Max. efficiency | 97.6% |
| Euro efficiency | 97.1% |
| Communication Interface | WiFi (USB) or LAN |
| Product Dimensions | |
|---|---|
| Dimensions (H x D x W) | 583mm x 480mm x 205 mm |
| Weight | 32kg |
| Ingress Protection | IP65 |
| Accesories | |
|---|---|
| Items Included | |
| Inverter | |
| 5x Mounting Bracket Fixings | |
| Mounting Bracket | |
