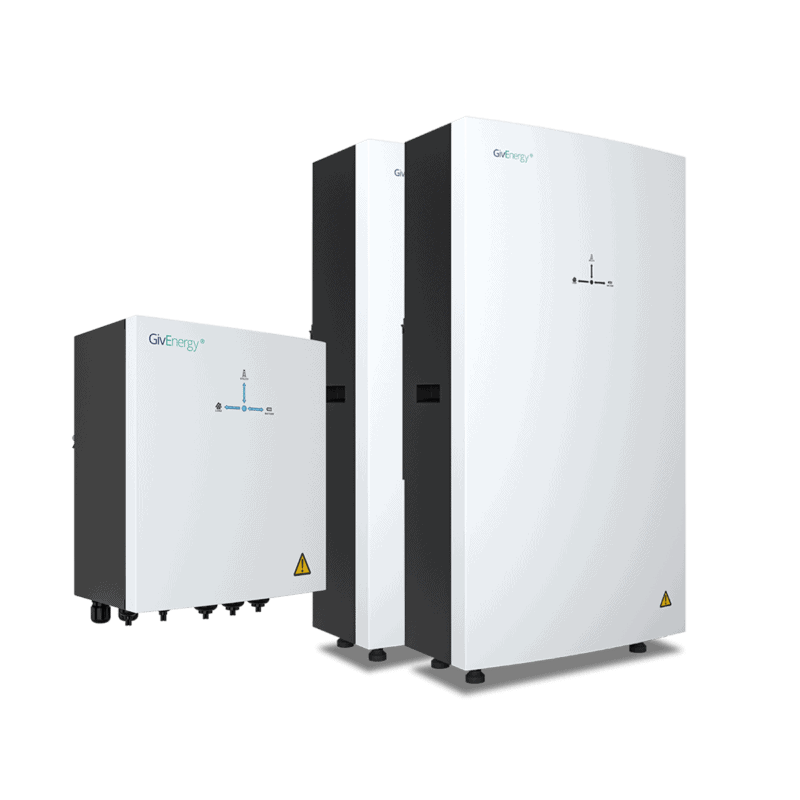

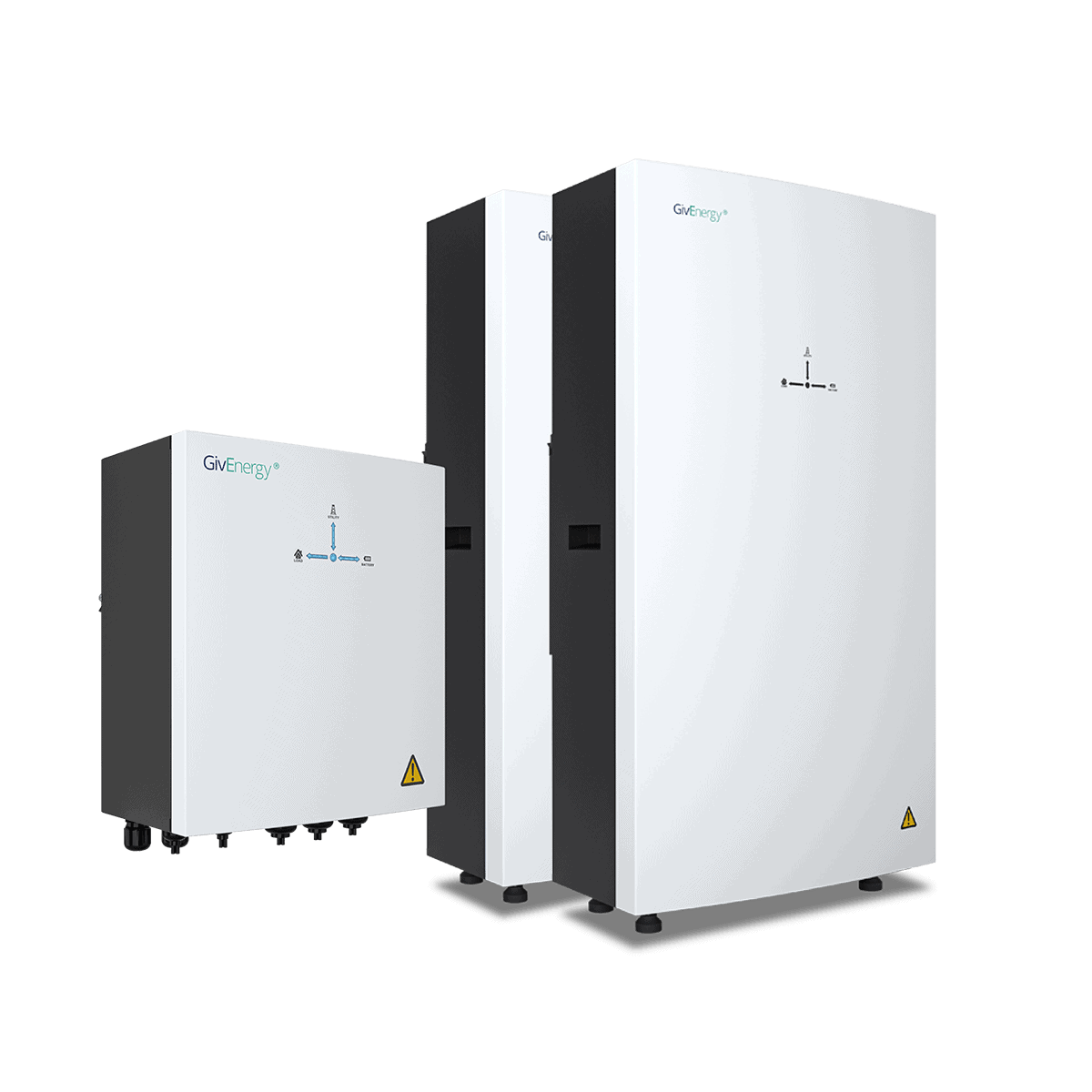

Thames AC Coupled Max Collection
260-346V Battery range
7.2kW Peak power for 10s, 6.5kW for 30s
6.0 kW Nominal AC power
307V Nominal voltage
The Thames AC Coupled Max, All In One AC Coupled 6.0 and Giv-Gateway, offers powerful, grid-only energy storage in a sleek, space-saving design.
Delivering a stable 6kW output with scalable storage, this compact system provides smart grid optimisation—giving you greater energy freedom and seamless efficiency without compromise.
Uninterrupted Power
Fast 20ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Expand the battery system as your energy needs grow, without the need for complex reinstallations.
AC Now, Solar Later
Designed for both AC and solar compatibility, allowing you to start with grid charging and seamlessly transition to solar when ready.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 27kWh (13.5kWh x 2) |
| Nominal AC Output Power | 3.6kW Gateway: 18.4kW |
| Whole Home Backup | Yes |
| Max. AC Current | 100A |
| Charge/Discharge Power | 6kW/12kW |
| Depth of Discharge (DoD) | 100% |
| Switchover Time | 20ms |
| Communication Interfaces | WiFi, LAN, 4G, RS485/CAN/LoRa (optional) |
| Warranty | 12 Years |
| Product Dimensions | Giv-Gateway |
|---|---|
| Width | 370mm |
| Depth | 190mm |
| Height | 410mm |
| Net product weight | 12.75kg |
| Accesories | All in One Unit |
|---|
| 2 x Bracket |
| 4x Expansion Bolt |
| WiFi Antenna |
| Giv-Gateway |
| Bracket |
| 2 x Bracket |
| 2 x Mounting Screw |
| 2 x Wall plug |
| Antenna |
| Key |
| 4 x M6 x 12 bracket screw |
