Thames AC Couple Plus Collection
260-346V Battery range
3.6kW Peak power on-grid, 6.0kW off-grid
3.6kW Nominal AC power
307V Nominal voltage

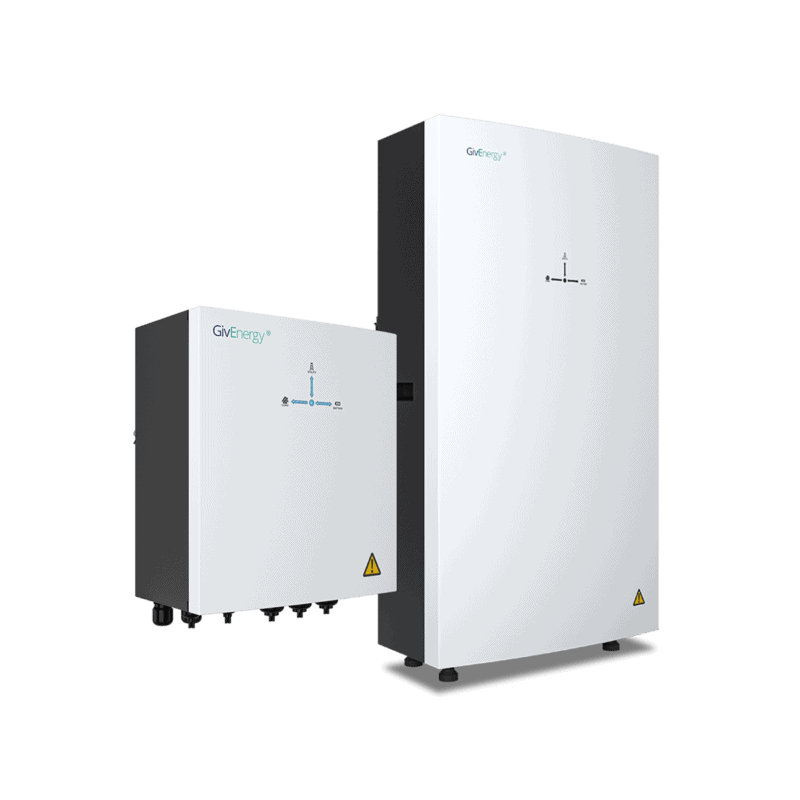

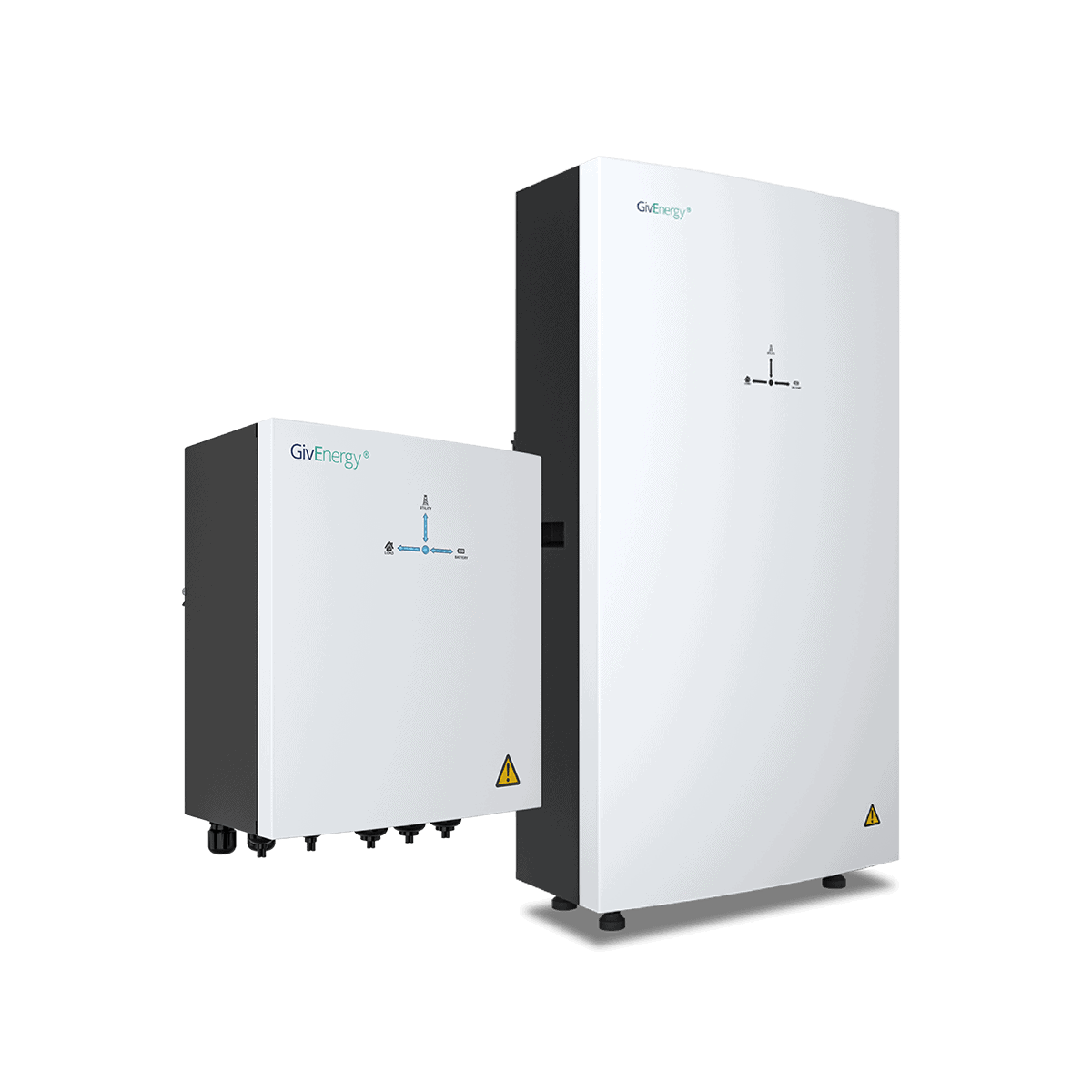

The Thames AC Coupled Plus, All In One AC Coupled 3.6 and Giv-Gateway, delivers reliable, grid-only energy storage in a compact, space-saving design.
With expandable battery options and a quick, plug-and-play installation, enjoy seamless setup with no lengthy DNO approvals required—just smart, fuss-free energy management.
Uninterrupted Power
Fast 20ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Expand the battery system as your energy needs grow, without the need for complex reinstallations.
Compact And Long-Lasting
High-performance, fire-resistant LiFePO4 batteries deliver over 12 years of reliable power in a space-saving design.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 13.5kWh |
| Nominal AC Output Power: 8kW/10kW/12kW and Gateway | 18.4kW |
| Whole Home Backup | Yes |
| Max. AC Current | 100A |
| Charge/Discharge Power | 6kW/12kW |
| Depth of Discharge (DoD) | 100% |
| Switchover Time | 20ms |
| Communication Interfaces | WiFi, LAN, 4G, RS485/CAN/LoRa (optional) |
| Warranty | 12 Years |
| Product Dimensions | Giv-Gateway |
|---|---|
| Width | 370mm |
| Depth | 190mm |
| Height | 410mm |
| Net product weight | 12.75kg |
| All-in-One | |
| Width | 600mm |
| Depth | 280mm |
| Height | 1100mm |
| Accesories | All in One Unit |
|---|
| 2 x Bracket |
| 4x Expansion Bolt |
| WiFi Antenna |
| Giv-Gateway |
| Bracket |
| 2 x Bracket |
| 2 x Mounting Screw |
| 2 x Wall plug |
| Antenna |
| Key |
| 4 x M6 x 12 bracket screw |
