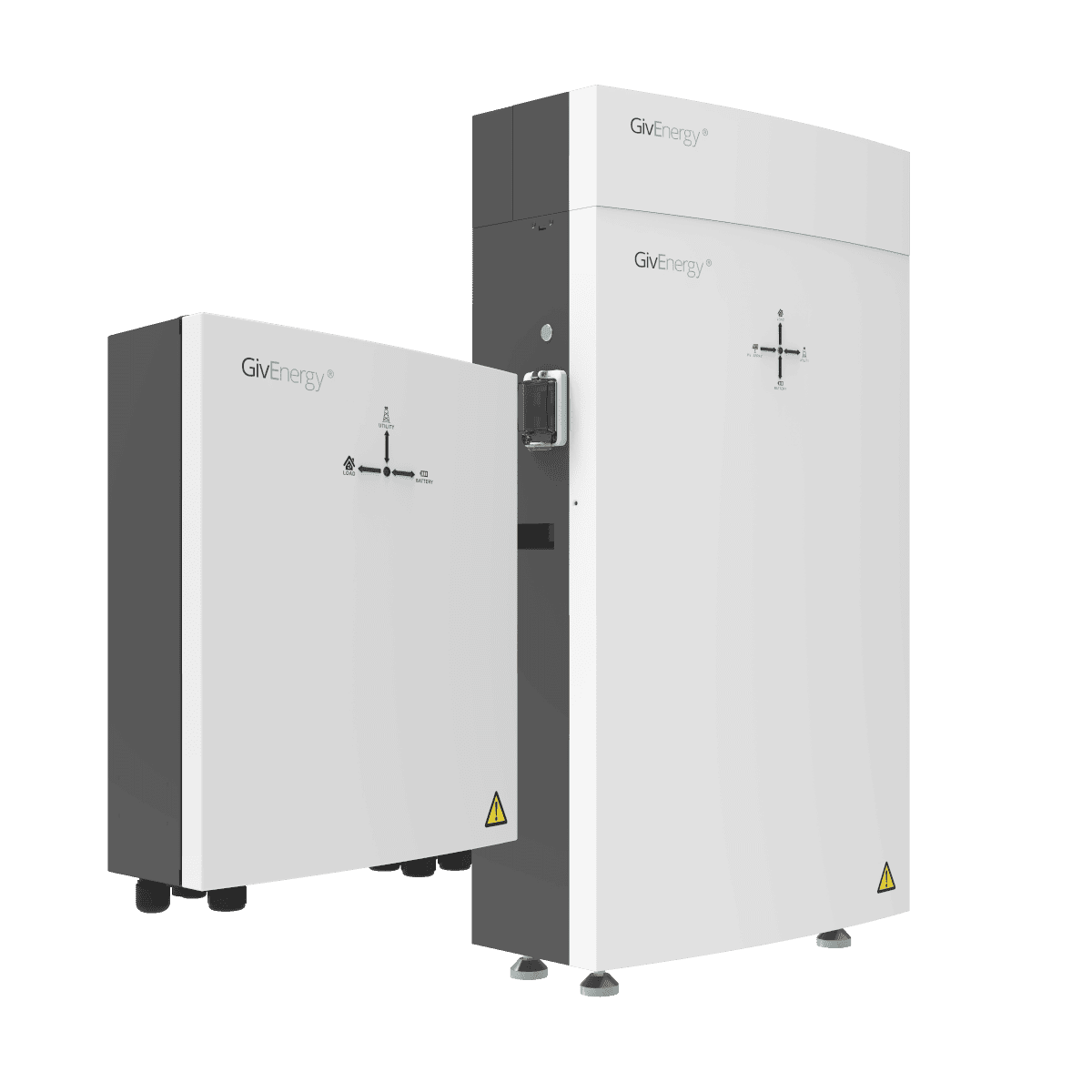

Thames Hybrid Plus Collection
13.5kWh Capacity
The Thames Hybrid Plus, All In One Hybrid 8.0 and Giv-Gateway, helps smaller households with moderate energy needs achieve true grid independence and reliable protection from power outages.
Designed for homes with existing solar systems or those planning to go solar, it offers direct solar and AC charging options, optimised energy efficiency, and built with safe and long-lasting LiFePOâ‚„ battery technology.
Uninterrupted Power
Fast 20ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Expand the battery system as your energy needs grow, without the need for complex reinstallations.
AC Now, Solar Later
Designed for both AC and solar compatibility, allowing you to start with grid charging and seamlessly transition to solar when ready.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 13.5kWh |
| Nominal AC Output Power: 8kW/10kW/12kW and Gateway | 18.4kW |
| Whole Home Backup | Yes |
| Max. AC Current | 100A |
| Charge/Discharge Power | 6kW/12kW |
| Depth of Discharge (DoD) | 100% |
| Switchover Time | 20ms |
| Communication Interfaces | WiFi, LAN, 4G, RS485/CAN/LoRa (optional) |
| Warranty | 12 Years |
| Product Dimensions | Giv-Gateway |
|---|---|
| Width | 370mm |
| Depth | 190mm |
| Height | 410mm |
| Net product weight | 12.75kg |
| Accesories | All in One Unit |
|---|
| 2 x Bracket |
| 4x Expansion Bolt |
| WiFi Antenna |
| Giv-Gateway |
| Bracket |
| 2 x Bracket |
| 2 x Mounting Screw |
| 2 x Wall plug |
| Antenna |
| Key |
| 4 x M6 x 12 bracket screw |
