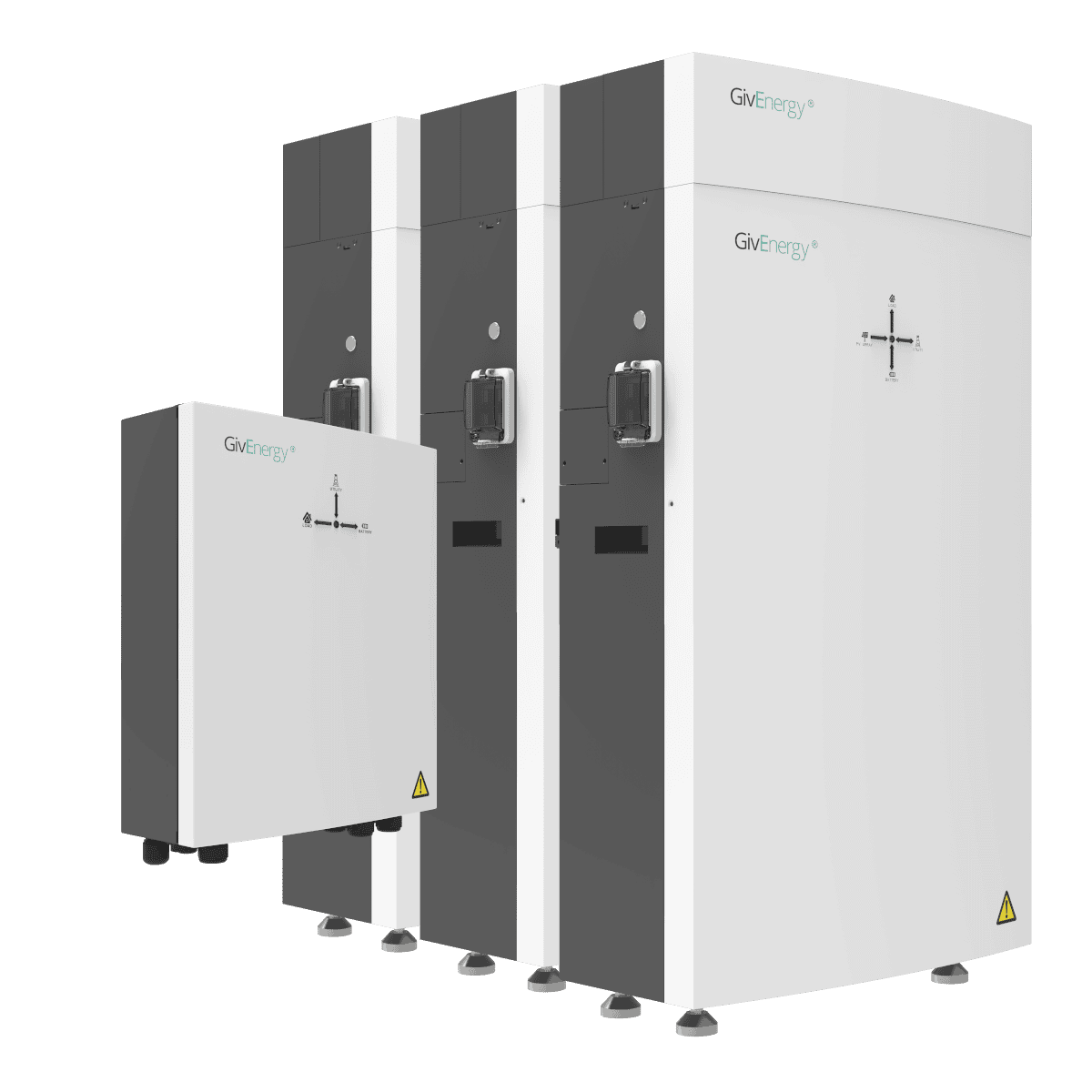

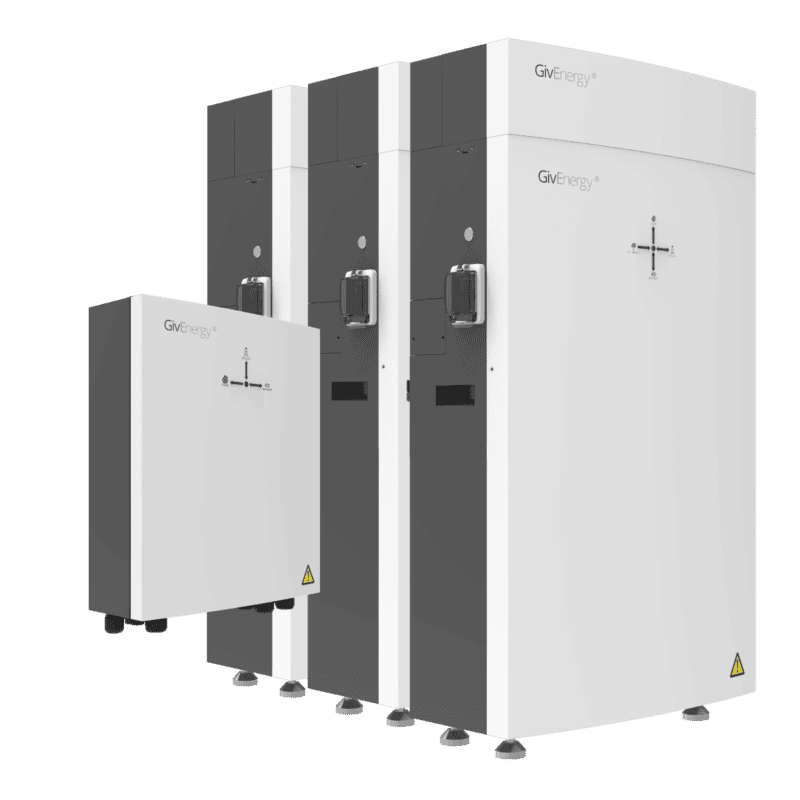

Thames Hybrid Pro Collection
40.5kWh Capacity (3 x 13.5kWh)
Ideal for homes with existing solar systems or those planning to go solar, the Thames Hybrid Pro, All In One Hybrid 12.0 and Giv-Gateway, offers direct solar charging and maximised energy efficiency.
This compact energy powerhouse delivers robust performance, keeping even the most demanding appliances running smoothly and ensuring your home remains powered, efficient, and prepared for anything.
Uninterrupted Power
Fast 20ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Expand the battery system as your energy needs grow, without the need for complex reinstallations.
AC Now, Solar Later
Designed for both AC and solar compatibility, allowing you to start with grid charging and seamlessly transition to solar when ready.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 40.5kWh (13.5xW x 3) |
| Nominal AC Output Power: 8kW/10kW/12kW and Gateway | 18.4kW |
| Whole Home Backup | Yes |
| Max. AC Current | 100A |
| Charge/Discharge Power | 12kW/12kW |
| Depth of Discharge (DoD) | 100% |
| Switchover Time | 20ms |
| Communication Interfaces | WiFi, LAN, 4G, RS485/CAN/LoRa (optional) |
| Warranty | 12 Years |
| Product Dimensions | Giv-Gateway |
|---|---|
| Width | 370mm |
| Depth | 190mm |
| Height | 410mm |
| Net product weight | 12.75kg |
| Accesories | All in One Unit |
|---|
| 2 x Bracket |
| 4x Expansion Bolt |
| WiFi Antenna |
| Giv-Gateway |
| Bracket |
| 2 x Bracket |
| 2 x Mounting Screw |
| 2 x Wall plug |
| Antenna |
| Key |
| 4 x M6 x 12 bracket screw |
