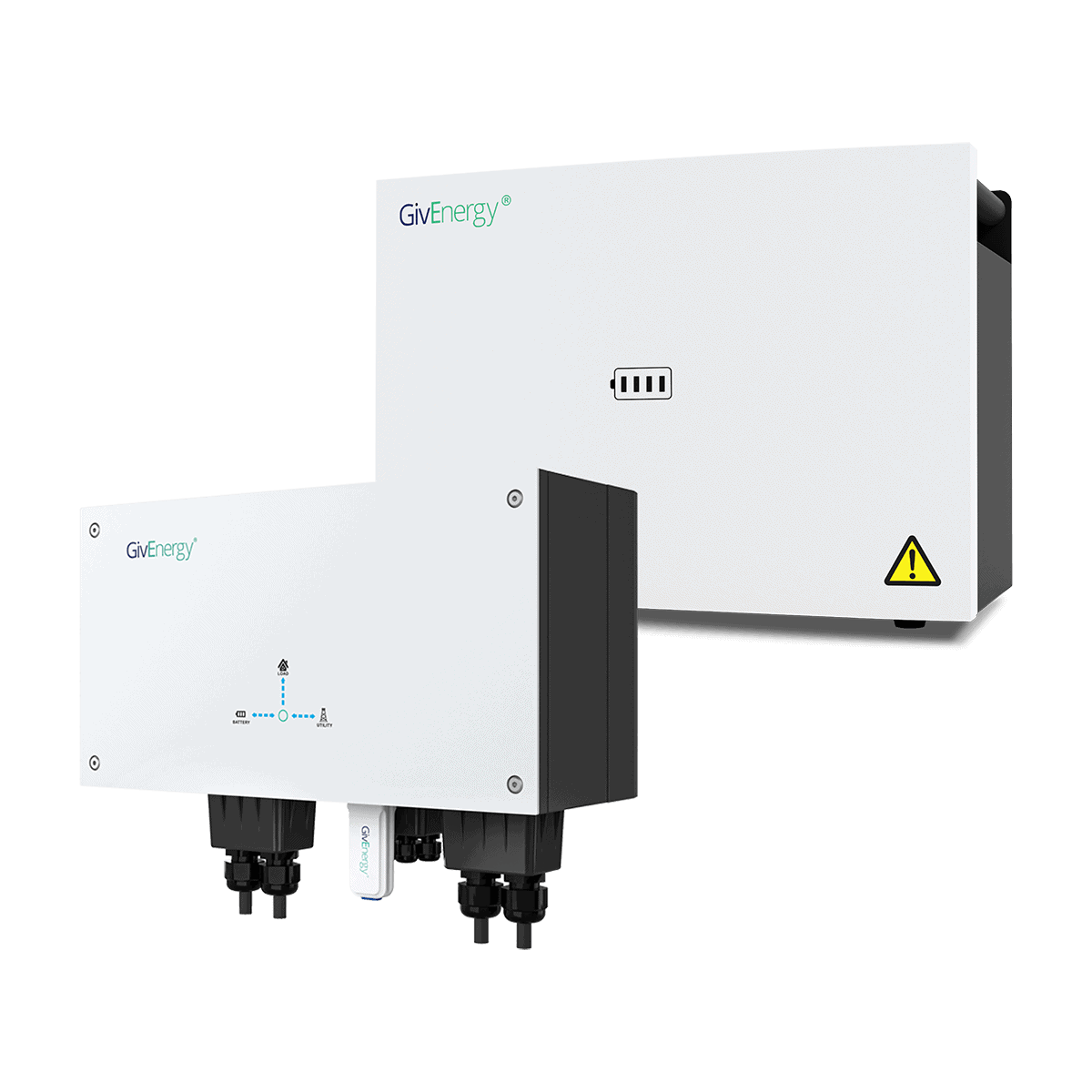

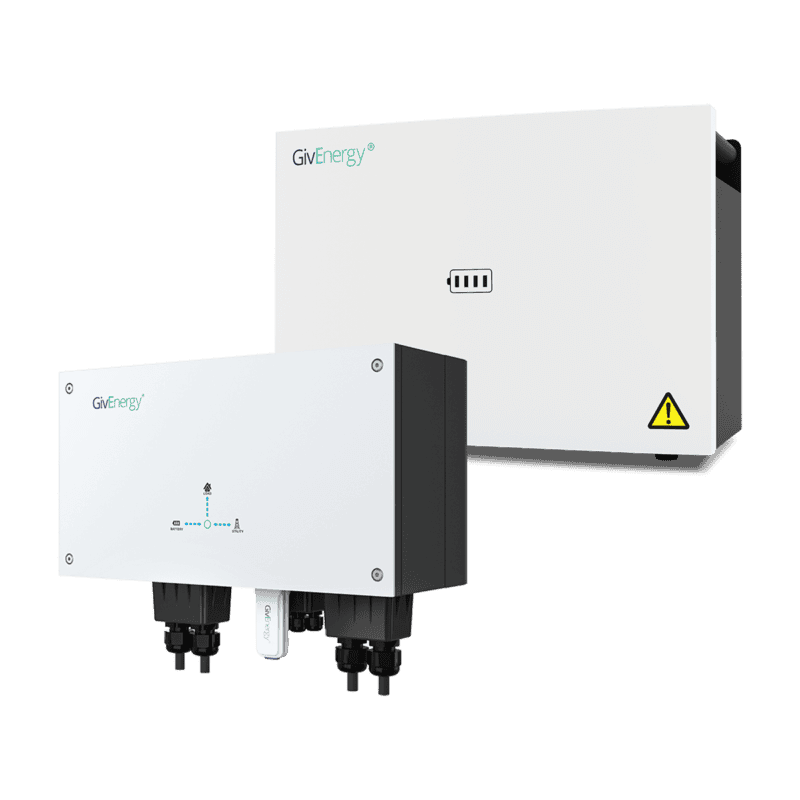

Trent AC Coupled Collection Plus
3kW Nominal AC power
13A Max output
202V – 262V Nominal voltage
Solar, wind, hydro and grid compatible
5.12kWh / 51Ah Capacity
The Trent Plus offers a smart and efficient entry into energy storage, featuring an AC coupled inverter and Low Voltage Batteries 5.12 kWh.
Featuring 60A continuous and 120A peak current, this bundle meets the energy needs of modern homes—providing reliable backup power for essential devices and ensuring your home remains efficient and resilient.
Key To Energy Management
Pairs seamlessly with your existing energy system! Compatible with various power sources, including grid, solar, wind and hydro power.
Scalable And Future-Proof
Expand your setup as needed, even supporting a microgrid or 3-phase system.
Unlimited Cycles and Longevity
Experience unlimited cycles at up to 100% Depth of Discharge without compromising the battery's lifespan.
Safe and Secure Power
Batteries are built with LiFePO4 cell technology, they offer enhanced safety, stability, and non-toxic, eco-friendly performance.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 5.12kWh / 100Ah |
| Nominal AC Output | 3kW |
| Depth of Discharge (DoD) | 90% |
| Maximum Charge/Discharge Power | 3kW |
| Battery Voltage Range | 45V-58V |
| Warranty | 12 Years |
| Ingress Protection | IP65 |
| Communication Interfaces | WiFi, LAN |
| Cell Technology | LiFePO4 |
| Inverter + Battery Weight: | 22.4Kg + 53Kg |
| Product Dimensions | AC Coupled Inverter |
|---|---|
| Width | 480mm |
| Depth | 223mm |
| Height | 260mm |
| Net product weight | 260mm |
| Low Voltage Batteries 5.12 | |
| Width | 480mm |
| Depth | 223mm |
| Height | 338mm |
| Net product weight | 85 x 2kg |
| AC Coupled Inverter |
| Inverter |
| Mounting Bracket |
| BAT Wire Cover |
| BMS, RS485 Com Wire Cover |
| AC Terminals Cover |
| BMS, RS485 Com Wire Cover |
| 16x Cover Screw |
| 2x Inverter Security Pin |
| 4x Bracket Wall Fixings |
| 2x Battery Input Terminations |
|
Battery |
| Battery Module |
| Wall Mounting Bracket |
| 4 or 6 Fixing Kit |
| Cable Pack (Power and Data 2m) |
| Waterproof Blanking Plug |
| USB Stick |
