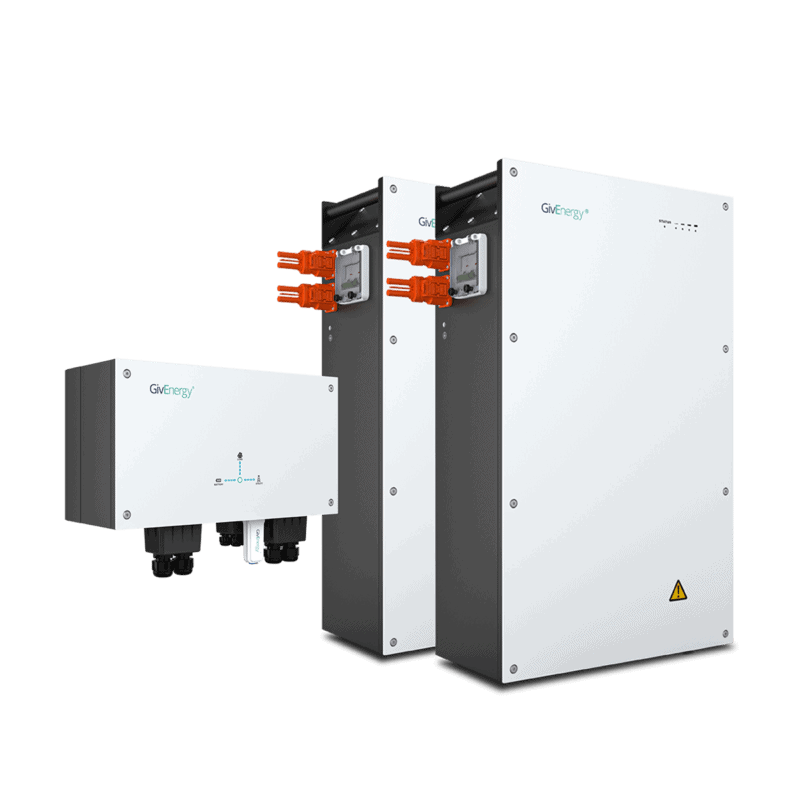

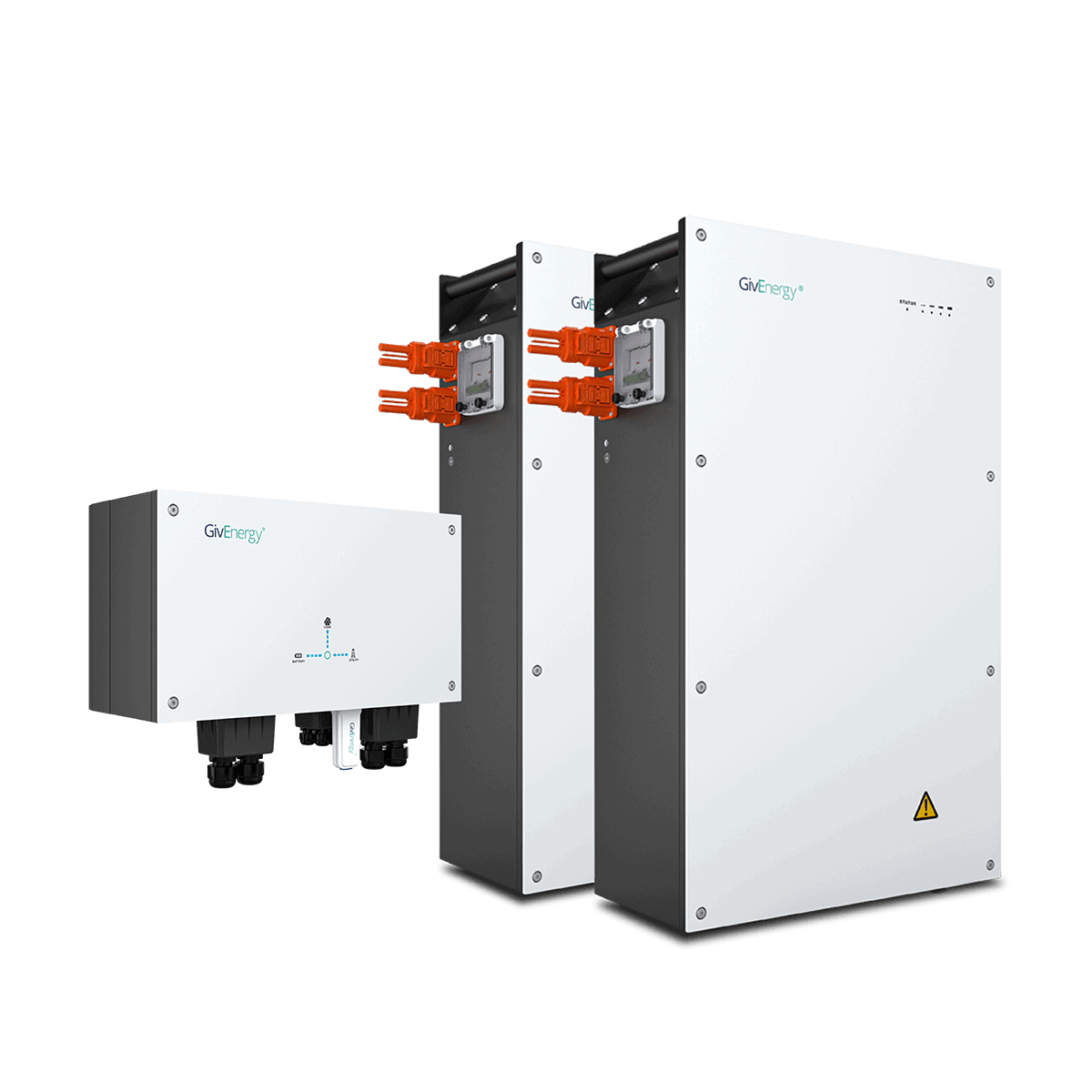

Trent AC Coupled Collection Pro
3kW Nominal AC power
13A Max output
202V – 262V Nominal voltage
Solar, wind, hydro and grid compatible
19kWh / 186Ah Capacity (2 x 9.5kWh)
With a total capacity of 19 kWh, the Trent Pro combines an AC coupled inverter with dual Low Voltage Batteries 9.5 kWh to meet the demands of homes with advanced energy needs.
Supporting a broad range of energy sources—including solar, wind, and hydro—it’s an ideal choice for households with existing solar systems (without affecting government incentives) or those exploring green energy options.
Key To Energy Management
Pairs seamlessly with your existing energy system! Compatible with various power sources, including grid, solar, wind and hydro power.
Scalable And Future-Proof
Expand your setup as needed, even supporting a microgrid or 3-phase system.
Unlimited Cycles and Longevity
Experience unlimited cycles at up to 100% Depth of Discharge without compromising the battery's lifespan.
Safe and Secure Power
Batteries are built with LiFePO4 cell technology, they offer enhanced safety, stability, and non-toxic, eco-friendly performance.
Technical Specifications
| General Information | |
|---|---|
| Battery Capacity | 9.5kWh / 185Ah |
| Nominal AC Output | 3kW |
| Depth of Discharge (DoD) | 90% |
| Maximum Charge/Discharge Power | 3kW |
| Battery Voltage Range | 45V-58V |
| Warranty | 12 Years |
| Ingress Protection | IP65 |
| Communication Interfaces | WiFi, LAN |
| Cell Technology | LiFePO4 |
| Inverter + Battery Weight: | 22.4Kg + 53Kg |
