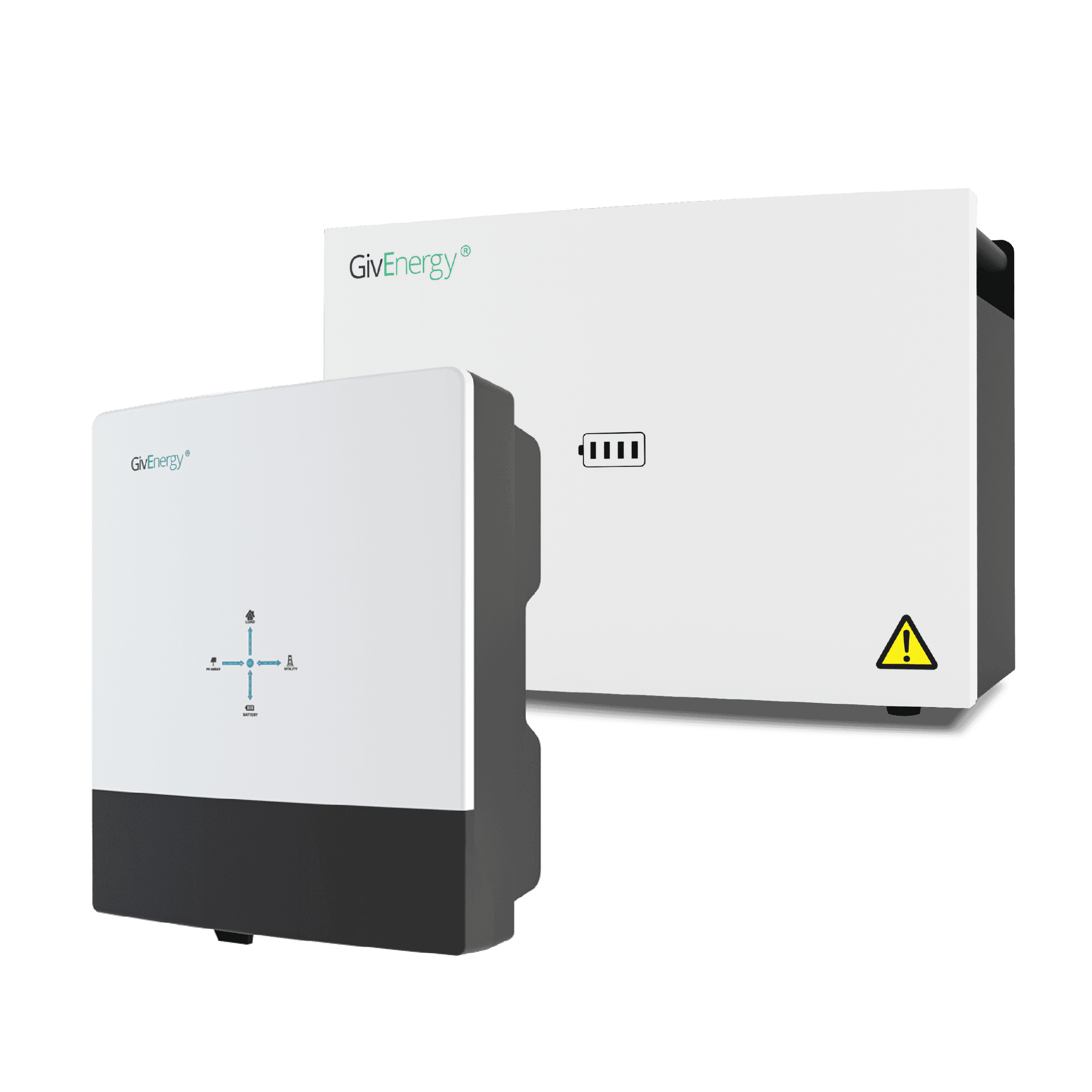

Trent Hybrid Collection Plus
7.5kWp Max PV input
10ms Switchover
Dual MPPT trackers
5.12kWh / 51Ah Capacity
Built to grow with your needs, the Trent Hybrid Plus pairs a 3.6kW Hybrid Inverter with 5.12kWh of battery storage, offering the flexibility to charge via solar or the grid and expand capacity over time.
It’s a future-ready solution for homes looking to take control of their energy use—without the upfront commitment of a larger or complex system.
Uninterrupted Power
Ultra-fast 10ms switchover keeps all your essential appliances running during power outages.
Scalable And Future-Proof
Expand your setup as needed, even supporting a microgrid or 3-phase system.
AI-Driven Energy Optimisation
Built-in intelligence charges during off-peak times, and discharges stored power during peak times, reducing costs by up to 85%.
AC Today, Solar Tomorrow
Flexible charging options allow you to charge via the grid or maximise solar energy generation via its built-in four solar string connections with advanced MPPT technology."
Technical Specifications
| General Information | Inverter |
|---|---|
| Nominal AC Output Power | 3.6kW |
| Max. DC Input Power: | 7.5kWp |
| MPPT Range | 90% |
| Max. Charge Power | 3.3kW |
| Max. Discharge Power: | 3.6kW |
| Battery Nominal Voltage | 51.2VDC |
| Max. Output Current | 16A |
| Automatic Switch Time | 10ms |
|
PV Max. Efficiency
|
97.6%
|
| Battery | |
| Capacity | 5.12kWh / 100Ah |
| Voltage range | 46.4V - 57.6V |
| Charge/discharge current | 60A |
| Max. Charge Power | 3.3kW |
| Depth of Discharge | 3.6kW |
| Ingress Protection | IP65 rating |
| Product Dimensions | LV Hybrid Inverter |
|---|---|
| Width | 480mm |
| Depth | 223mm |
| Height | 588mm |
| Weight | 32Kg |
| 5.12 Battery | |
| Width | 480mm |
| Depth | 242mm |
| Height | 338mm |
| Net product weight | 48 x 2kg |
| Inverter |
| Mounting Bracket Fixings |
| Bonding Kit |
|
Battery |
| Battery Module |
| Wall Mounting Bracket |
| User Manual |
| Expansion bolts |
| Ground screw |
| Security screw |
