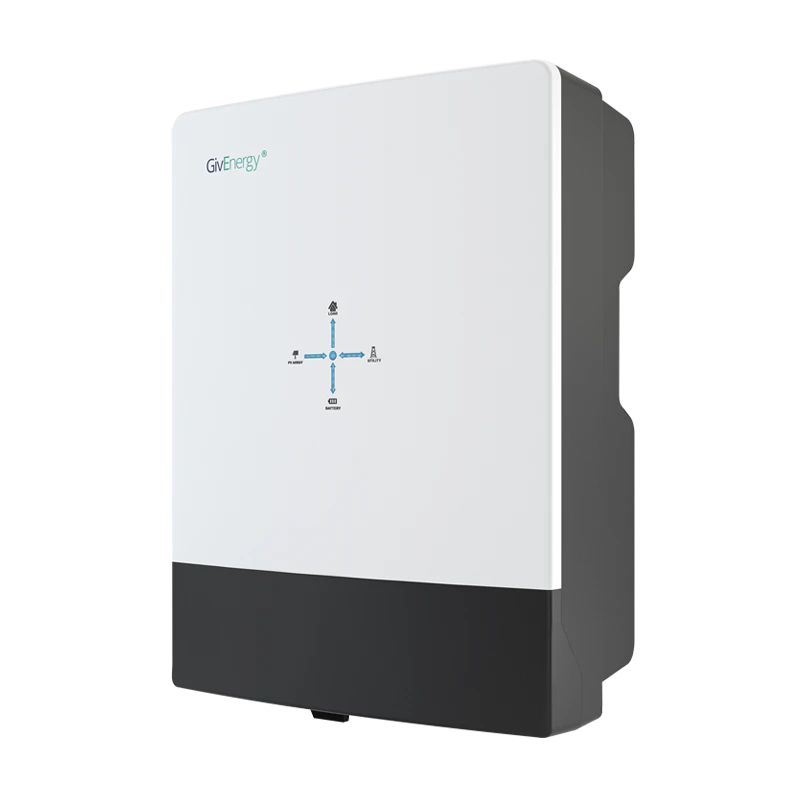

3 Phase Hybrid Inverter

The GivEnergy 3-Phase Hybrid Inverter 20|12|10|8|6 kW combines solar and battery inversion into a single unit, supporting both AC-coupled and DC-coupled operation. It is designed for larger residential properties and commercial installations requiring higher capacity, phase balancing, and high-power discharge capability up to 20|12|10|8|6 kW.

  • Three-phase hybrid inverter for larger residential or commercial systems.
  • AC and DC coupling supported via high-voltage LiFePO₄ battery systems.
  • Up to 20 kW discharge rate to reduce grid import.
  • On/off-grid phase balancing.
  • Plug-and-play installation with built-in WiFi/LAN.
  • Flexible tariff support (charge off-peak, discharge peak).
  • IP65 weather resistance for indoor and outdoor mounting.
  • 12-year standard warranty.

Technical Specifications

Battery Specifications (Low Capacity)

Battery Voltage Range
200–600 VDC
Nominal Battery Voltage
450 VDC
Battery Type
LiFePO₄
Communication Interface
CAN
Charge / Discharge Current
30 A / 30 A
Max Charge / Discharge Power
10000 W / 10500 W

Battery Specifications (High Capacity)

Battery Voltage Range
200–800 VDC
Nominal Battery Voltage
450 VDC
Battery Type
LiFePO₄
Communication Interface
CAN
Charge / Discharge Current
50 A / 50 A
Max Charge / Discharge Power
20000 W / 20000 W

Backup Output (Low Capacity)

Nominal Voltage
400/380 VAC
Nominal Power
10000 W
Max Output Current
16 A
Frequency
50/60 Hz
THDv
<3%
Automatic Switch Time
<20 ms
Pass-Through Current
50 A

Backup Output (High Capacity)

Nominal Voltage
400/380 VAC
Nominal Backup Output Power
20000 W
Max Output Current
29 A
THDv
<3%
Nominal Frequency
50 Hz
Automatic Switch Time
10 ms
Pass-Through Current
30 A

PV Input (Low Capacity)

Max PV Voltage
1000 V
Start-Up Voltage
200 V
Max DC Input Power
15000 W
Max Input Current (per string)
30 A (dual)
Short Circuit Current
38 A
MPPT Voltage Range
200–850 V
Nominal Voltage
600 V
MPPT Trackers / Strings per MPPT
2 / 2

PV Input (High Capacity)

Max PV Voltage
1000 V
Start-Up Voltage
200 V
Max DC Input Power
30000 W
Max Input Current (per string)
30 A
Max Short Circuit Current (per string)c
37.5 A
MPPT Voltage Range
200–850 V
Nominal PV Voltage
600 V
MPPT Trackers / Strings
2 / 2 per tracker

AC Output (Low Capacity)

Max Apparent Power to Grid
10000 VA
Nominal AC Output Power
10000 W
Max Output Current (per phase)
16 A
Nominal Voltage / Range
400/380 VAC (3W/N/PE)
Frequency Range
50/60 Hz ±5 Hz
Power Factor (Full Load)
>0.99
Power Factor Range
0.8 Leading – 0.8 Lagging
THDi (Nominal)
<3%
AC Connection
Three-phase

AC Output (High Capacity)

Max Apparent Power to Grid
20000 VA
Nominal AC Output Power
20000 W
Max Output Current (per phase)
29 A
Nominal Voltage / Range
400/380 VAC (3W/N/PE)
Frequency Range
50/60 Hz ±5 Hz
Power Factor Range
0.8 Lagging – 0.8 Leading
Power Factor (Full Load)
>0.99
THDi
<3%
AC Connection
Three-phase

Efficiency (Low Capacity)

Charge / Discharge Efficiency
97.5% / 97%
PV Max Efficiency
98%
Euro Efficiency
97.7%
MPPT Efficiency
99.9%

General Data (Low Capacity)

Weight
40.4 kg
Dimensions
658H × 214D × 480W mm
Protection Class
IP65
Noise Level
<30 dB
Self-Consumption
<18 W
Operational Temperature
-25°C to 60°C (derating above 50°C)
Altitude
Up to 4000 m
Humidity
0–100% (non-condensing)
Topology
Transformerless

Communication & Interfaces (Low Capacity)

BMS
CAN
Meter
RS485 ×2
Portal
WiFi/LAN
Display
LCD / LED / App

Certifications (Low Capacity)

CE
UKCA
G99
G100/2
IEC 62109-1 & 62109-2
EN50549
VDE 0124 / N4105
