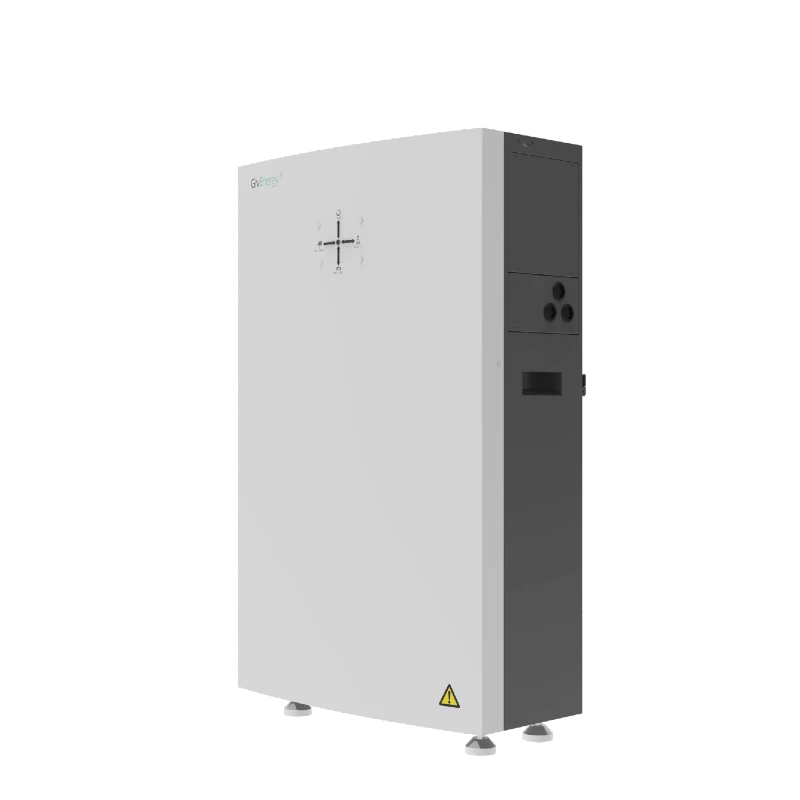

All In One 2

The All In One 2 delivers offers seemless switchover for backup power during blackouts when paired with a Gateway 2 and handles heavy energy loads, while remaining one of the most affordable battery storage systems in the market.

In addition, it’ll help you save up to 85% on bills as it maximises solar energy and can charge from the grid, only drawing power when it’s cheaper at night.

  • 6.0-12.0kW Nominal AC power
  • 13.5kWh Capacity
  • 230v (180v-270v) Nominal grid voltage
  • Instant Switchover (w/Gateway)
  • AC and solar compatible
  • 15 Year warranty

Power Your Home With The All In One 2

At GivEnergy, we believe energy shouldn’t cost the earth, in every sense. That’s why we’ve created the All In One 2, a next-generation home battery storage system designed to help you take control of your energy use, cut your electricity bills, and keep your home powered.

Whether you’re looking to store your own solar energy, charge during off-peak hours, or simply protect your home from rising energy costs, the All In One 2 is engineered to do more.

Future-Proof Power Without Limits

The All In One 2 features a streamlined, modular design, making it easy to install, handle, and expand. Start with 13.5 kWh and increase capacity with up to two Expansion Batteries as your energy needs grow.

And thanks to smart operating modes, including time-of-use, self-use, and EV charging, you can tailor how and when you store energy for maximum savings.

Innovation at the Heart of Home Energy Storage

The All In One 2 is a leap forward in inverter and battery technology that blends AI energy management, modular LFP battery scalability, and high-efficiency power conversion into one sleek, compact system.

Its AI-driven energy management automatically charges when electricity is cheapest and powers your home when rates are high-helping you save more. With a lightning-fast 20ms switchover, your essential appliances stay on during outages.

Being IP65-rated, it’s designed for indoor or outdoor use and pre-configured data connectivity for quick installations, it’s a reliable, hassle-free step toward energy independence.

Why Choose The All In One 2?

The All In One 2 delivers offers seemless switchover for backup power during blackouts when paired with a Gateway 2 handles heavy energy loads, while remaining one of the most affordable battery storage systems in the market.

In addition, it’ll help you save up to 85% on bills as it maximises solar energy and can charge from the grid, only drawing power when it’s cheaper at night.

Product Features

Instant Switchover Time

15 Year Warranty

Scalable and Modular Design

IP65 Rating

Cost-Effective with Optional 6 MPPT Unit

In-Built WiFi and LAN

Optimized Smart Energy Management

Four Solar String Inputs

Technical Specifications

INPUT / OUTPUT DATA (AC)

GIV-AIO-13.5-6.0/8.0/10.0/11.0/12.0
Rated AC Output Power (On-Grid)
6/8/10/11/12kW
Max. Apparent Power
6/8/10/11/12kVA
Nominal Off-Grid Power
12kVA
Peak Power (10s, Off-Grid)
14.4kVA
Rated/Max. Output Current (On-Grid)
26/34.8/43.5/47.8/52A
Nominal Grid Voltage/Range
230V.a.c (180 to 270V.a.c)
Rated Grid Frequency
50/60±5Hz
Power Factor (Full Load)
>0.9
Displacement Power Factor
0.8 Lagging to 0.8 Leading
Total Harmonic Distortion (THDi, Rated Power)
<3%
AC Output Type
Single Phase

INTERNAL BATTERY

Battery Type
Li-ion - LiFePO4
Operating Voltage Range
260-346V
Nominal Voltage
307V
Max. Charging / Discharging Current
25A1 /41A
Rated Capacity
52Ah
Max. Battery Charging / Discharging Power
6kW2 /12.6kW
Design Energy
15.9kWh
Communication Interfaces
CAN

GENERAL DATA

GIV-AIO-13.5-6.0/8.0/10.0/11.0/12.0
Max. Battery Charging / Discharging Power
96.5%
PV Max. Efficiency
97.1%/97.1%/97.3%/97.3%/97.5%
Euro Efficiency
96.6%/96.6%/96.8%/96.8%/97.0%
MPPT Efficiency
99.9%
Ingress Protection
IP65
Protection Class
I
Overvoltage Category
Battery: II, AC: III
Inverter Topology
Transformerless
Cooling
Smart Fan Cooling
Noise Emission
50dB
Operating Temperature Range
-20°C - 55°C
Humidity
0~100% (Non-Condensing)
Altitude
4000m (Derating above 2000m)
Dimensions (WxHxD)
600x950x280(mm)
Weight
AIO with Batteries 181.3kg
AIO without Batteries 56.5kg
MPPT unit 17.8kg
Individual battery pack 31.2
Standby Power
<15W
No. of Parallel Operation
2
Display LCD
LED and APP
Communication Interfaces
RS485/WIFI/4G/LAN/BLE/CAN
Warranty
15 Years
Country Of Manufacture
China
Certificates
G99, CE, UKCA, IEC62619
