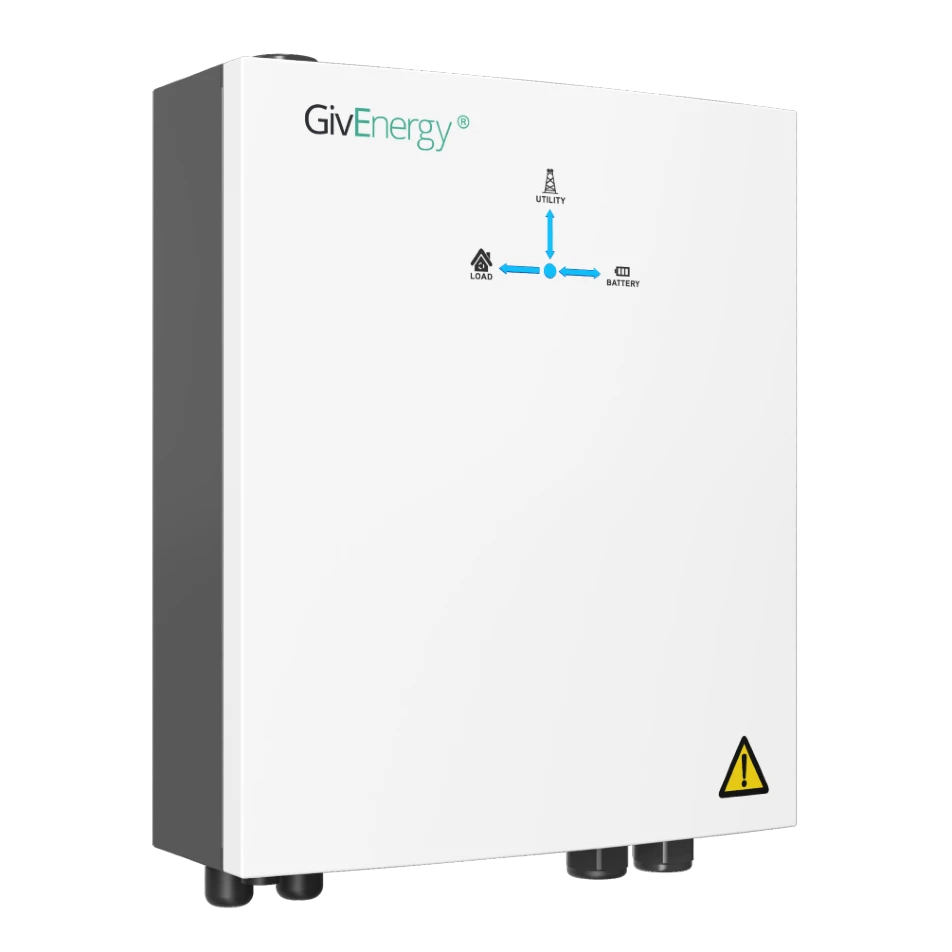

Gateway 2 (AIO2 Only)

The Gateway 2 provides whole-home backup for the All in One 2 system, delivering instantaneous switchover during grid outages to keep the property powered. It integrates seamlessly within the GivEnergy ecosystem and supports solar PV generation, EV chargers, and multiple load outputs including general, critical, and smart loads. Designed for larger systems, Gateway 2 enables full control and routing of power through a single device.

  • Instantaneous switchover to maintain power during a grid outage.
  • Pre-installed energy meter for reduced installation complexity.
  • Supports PV, All in One 2, EV charger, critical loads, smart loads, and general loads.
  • Multiple AC output channels with independent protection ratings.
  • In-built PV and EV charger connection points.
  • Broad communication support: RS485, WiFi, 4G, LAN, BLE, CAN.
  • IP65 enclosure suitable for all environments.
  • 15-year warranty (excluding switch gear).

Technical Specifications

Grid Connection (AC)

Max AC Current
100 A
Rated Voltage
230 V.a.c (180–270 V.a.c)
Rated Grid Frequency
50/60 Hz ± 5 Hz
Nominal AC Current
80 A
Nominal AC Power
18,400 W
Maximum Output Overcurrent Protection
100 A

Outputs

General Load Output (AC)
Max AC Current
90 A
Nominal AC Current
40 A
Nominal AC Power
9,200 W
Max Output Overcurrent Protection
40 A
Voltage & Frequency
230 V.a.c (180–270 V), 50/60 Hz
Max Output Fault Current
6,000 A
Critical Load Output (AC)
Max AC Current
40 A
Nominal AC Current
40 A
Nominal AC Power
9,200 W
Max Output Overcurrent Protection
40 A
Fault Current
6,000 A
Smart Load Output (AC)
Max AC Current
40 A
Rated Voltage
230 V.a.c (180–270 V)
Rated Grid Frequency
50/60 Hz
Fault Current
6,000 A
EV Charger Output (AC)
Max AC Current
32 A
Nominal AC Current
32 A
Nominal AC Power
7,200 W
Overcurrent Protection
32 A

Inputs

All in One Inputs (AC)
Max AC Current
63 A
Nominal AC Current
52 A
Rated Voltage
230 V.a.c (180–270 V)
Frequency
50/60 Hz
All in One Parallel Inputs (AC)
Max AC Current
63 A
Nominal AC Current
52 A
Rated Voltage
230 V.a.c
Frequency
50/60 Hz
PV Input (AC)
Max AC Current
43 A
Nominal AC Current
43 A
Rated Voltage
230 V.a.c
Rated Grid Frequency
50/60 Hz

General Data

Protection Class
Class I
Dimensions
460H × 380W × 150D mm
460H × 380W × 150D mm
16.8 kg
Operating Temperature
-20°C to +50°C
Ingress Protection
IP65
Certification
IEC61439, UKCA, CE
Display
LCD, LED, and App
Communication Interfaces
RS485 / WiFi / 4G / LAN / BLE / CAN
Country of Manufacture
China
Warranty
15 Years (excluding switch gear)
